Included schema CoordSys.xsd
Namespace http://voparis-europlanet.obspm.fr/xml/TAPCore/EPNCore.xsd
Annotations

Planetary Science Data Model: declaration of several metadata elements used
to define the coordinate system and type, the resolution, the coverage, the
sampling in dataset and granule description.
Properties
attribute form default: unqualified
element form default: qualified
version: 1.0
Element psr:CoordSysType / psr:particleFrame
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram stc-v1_30_xsd.tmp#STCReference stc-v1_30_xsd.tmp#stcBaseType stc-v1_30_xsd.tmp#coordFrameType_Name stc-v1_30_xsd.tmp#coordFrameType CoordSys_xsd.tmp#ParticleFrameType
Type psr:ParticleFrameType
Type hierarchy
Properties
content: complex
minOccurs: 0
Model Name{0,1}
Children Name
Instance

<psr:particleFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="" xmlns:psr="http://voparis-europlanet.obspm.fr/xml/PSR/v1.0" xmlns:stc="http://www.ivoa.net/xml/STC/stc-v1.30.xsd">
  <stc:Name>{0,1}</stc:Name>
</psr:particleFrame>
Attributes
QName Type Fixed Default Use Annotation
IDREF_type xs:string optional
ID_type xs:string optional
id xs:ID optional
idref xs:IDREF optional
ucd xs:string optional
xlink:href xs:anyURI optional
xlink:type restriction of xs:NMTOKEN simple optional
Source

<xs:element name="particleFrame" type="psr:ParticleFrameType" minOccurs="0"/>

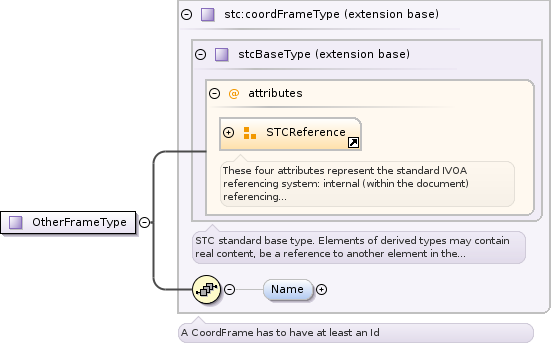

Element psr:CoordSysType / psr:otherFrame
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram stc-v1_30_xsd.tmp#STCReference stc-v1_30_xsd.tmp#stcBaseType stc-v1_30_xsd.tmp#coordFrameType_Name stc-v1_30_xsd.tmp#coordFrameType CoordSys_xsd.tmp#OtherFrameType
Type psr:OtherFrameType
Type hierarchy
Properties
content: complex
minOccurs: 0
Model Name{0,1}
Children Name
Instance

<psr:otherFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="" xmlns:psr="http://voparis-europlanet.obspm.fr/xml/PSR/v1.0" xmlns:stc="http://www.ivoa.net/xml/STC/stc-v1.30.xsd">
  <stc:Name>{0,1}</stc:Name>
</psr:otherFrame>
Attributes
QName Type Fixed Default Use Annotation
IDREF_type xs:string optional
ID_type xs:string optional
id xs:ID optional
idref xs:IDREF optional
ucd xs:string optional
xlink:href xs:anyURI optional
xlink:type restriction of xs:NMTOKEN simple optional
Source

<xs:element name="otherFrame" type="psr:OtherFrameType" minOccurs="0"/>

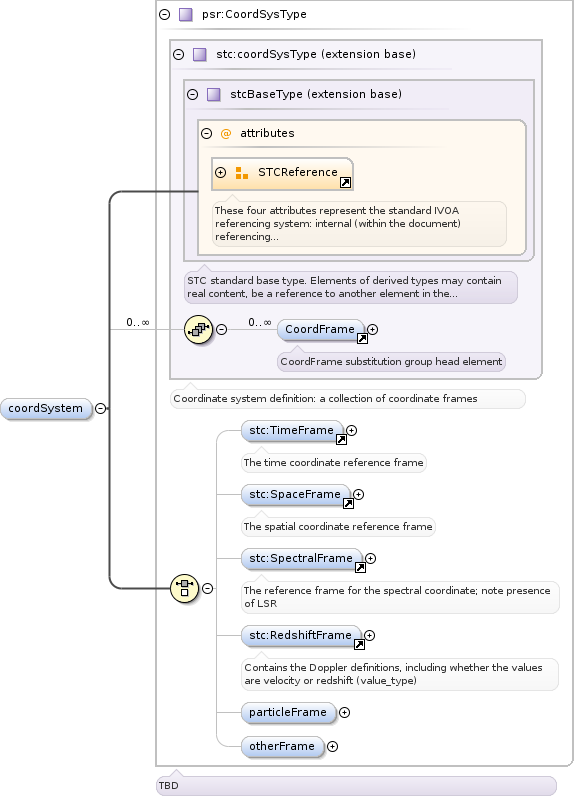

Element psr:CoverageType / psr:coordSystem
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram stc-v1_30_xsd.tmp#STCReference stc-v1_30_xsd.tmp#stcBaseType stc-v1_30_xsd.tmp#CoordFrame stc-v1_30_xsd.tmp#coordSysType stc-v1_30_xsd.tmp#TimeFrame stc-v1_30_xsd.tmp#SpaceFrame stc-v1_30_xsd.tmp#SpectralFrame stc-v1_30_xsd.tmp#RedshiftFrame CoordSys_xsd.tmp#CoordSysType_particleFrame CoordSys_xsd.tmp#CoordSysType_otherFrame CoordSys_xsd.tmp#CoordSysType

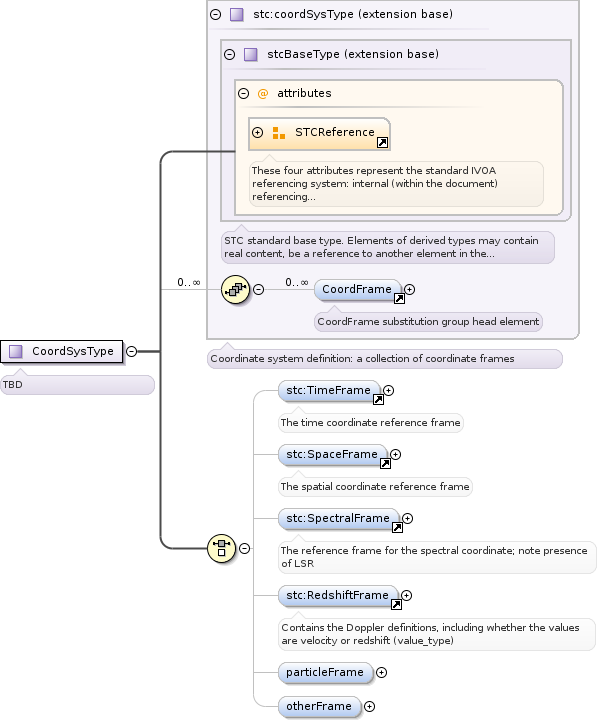

Type psr:CoordSysType
Type hierarchy
Properties
content: complex
minOccurs: 0
Model CoordFrame* , (TimeFrame{0,1} | SpaceFrame{0,1} | SpectralFrame{0,1} | RedshiftFrame{0,1} | psr:particleFrame{0,1} | psr:otherFrame{0,1})
Children CoordFrame, RedshiftFrame, SpaceFrame, SpectralFrame, TimeFrame, psr:otherFrame, psr:particleFrame
Instance

<psr:coordSystem xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="" xmlns:psr="http://voparis-europlanet.obspm.fr/xml/PSR/v1.0" xmlns:stc="http://www.ivoa.net/xml/STC/stc-v1.30.xsd">
  <stc:CoordFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,unbounded}</stc:CoordFrame>
  <stc:TimeFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</stc:TimeFrame>
  <stc:SpaceFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</stc:SpaceFrame>
  <stc:SpectralFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</stc:SpectralFrame>
  <stc:RedshiftFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="" value_type="VELOCITY">{0,1}</stc:RedshiftFrame>
  <psr:particleFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</psr:particleFrame>
  <psr:otherFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</psr:otherFrame>
</psr:coordSystem>
Attributes
QName Type Fixed Default Use Annotation
IDREF_type xs:string optional
ID_type xs:string optional
id xs:ID optional
idref xs:IDREF optional
ucd xs:string optional
xlink:href xs:anyURI optional
xlink:type restriction of xs:NMTOKEN simple optional
Source

<xs:element name="coordSystem" type="psr:CoordSysType" minOccurs="0"/>

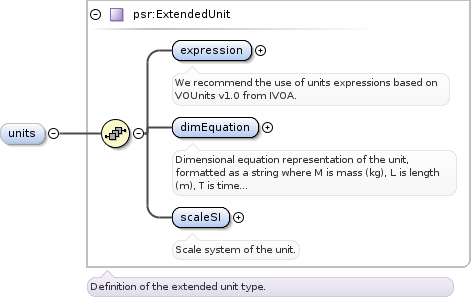

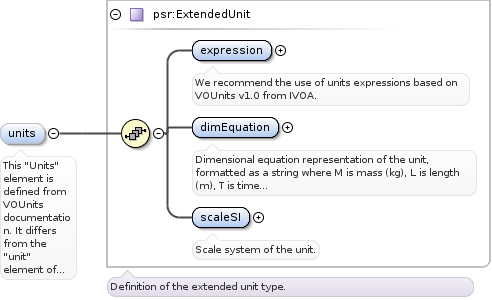

Element psr:CoverageType / psr:units
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram ExtendedUnits_xsd.tmp#ExtendedUnit_expression ExtendedUnits_xsd.tmp#ExtendedUnit_dimEquation ExtendedUnits_xsd.tmp#ExtendedUnit_scaleSI ExtendedUnits_xsd.tmp#ExtendedUnit
Type psr:ExtendedUnit
Properties
content: complex
minOccurs: 0
Model psr:expression , psr:dimEquation , psr:scaleSI
Children psr:dimEquation, psr:expression, psr:scaleSI
Instance

<psr:units xmlns:psr="http://voparis-europlanet.obspm.fr/xml/PSR/v1.0">
  <psr:expression>{1,1}</psr:expression>
  <psr:dimEquation>{1,1}</psr:dimEquation>
  <psr:scaleSI>{1,1}</psr:scaleSI>
</psr:units>
Source

<xs:element name="units" type="psr:ExtendedUnit" minOccurs="0"/>
Element psr:CoverageType / psr:location
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Annotations

Typical value on one axis
Diagram
Diagram CoordSys_xsd.tmp#LocationType_extendCoordSystem CoordSys_xsd.tmp#LocationType_coord CoordSys_xsd.tmp#LocationType_units CoordSys_xsd.tmp#LocationType_documentation CoordSys_xsd.tmp#LocationType

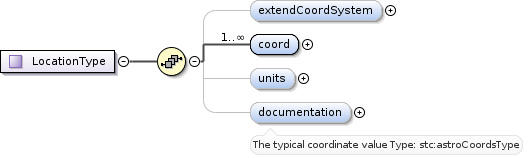

Type psr:LocationType
Properties
content: complex
minOccurs: 0
Model psr:extendCoordSystem{0,1} , psr:coord+ , psr:units{0,1} , psr:documentation{0,1}
Children psr:coord, psr:documentation, psr:extendCoordSystem, psr:units
Instance

<psr:location xmlns:psr="http://voparis-europlanet.obspm.fr/xml/PSR/v1.0">
  <psr:extendCoordSystem xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</psr:extendCoordSystem>
  <psr:coord coord_system_id="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{1,unbounded}</psr:coord>
  <psr:units>{0,1}</psr:units>
  <psr:documentation>{0,1}</psr:documentation>
</psr:location>
Source

<xs:element name="location" type="psr:LocationType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Typical value on one axis</xs:documentation>
  </xs:annotation>
</xs:element>

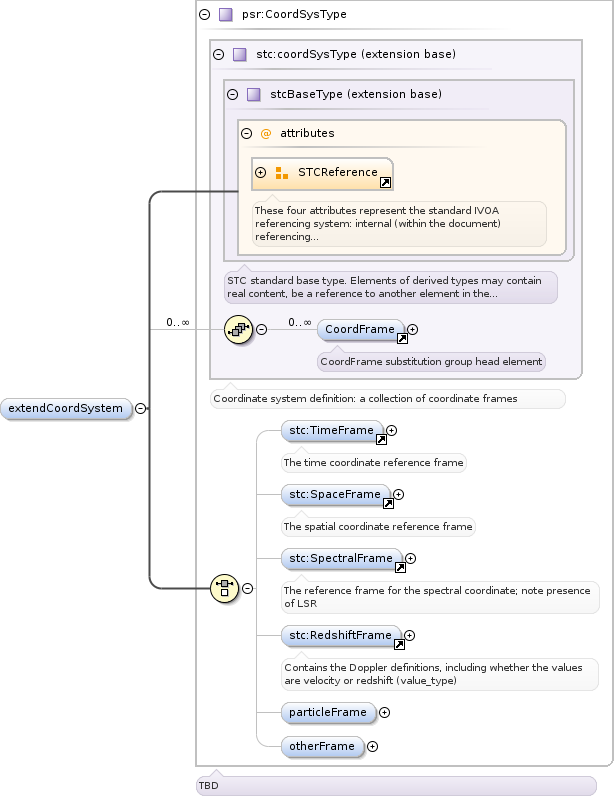

Element psr:LocationType / psr:extendCoordSystem
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram stc-v1_30_xsd.tmp#STCReference stc-v1_30_xsd.tmp#stcBaseType stc-v1_30_xsd.tmp#CoordFrame stc-v1_30_xsd.tmp#coordSysType stc-v1_30_xsd.tmp#TimeFrame stc-v1_30_xsd.tmp#SpaceFrame stc-v1_30_xsd.tmp#SpectralFrame stc-v1_30_xsd.tmp#RedshiftFrame CoordSys_xsd.tmp#CoordSysType_particleFrame CoordSys_xsd.tmp#CoordSysType_otherFrame CoordSys_xsd.tmp#CoordSysType
Type psr:CoordSysType
Type hierarchy
Properties
content: complex
minOccurs: 0
Model CoordFrame* , (TimeFrame{0,1} | SpaceFrame{0,1} | SpectralFrame{0,1} | RedshiftFrame{0,1} | psr:particleFrame{0,1} | psr:otherFrame{0,1})
Children CoordFrame, RedshiftFrame, SpaceFrame, SpectralFrame, TimeFrame, psr:otherFrame, psr:particleFrame
Instance

<psr:extendCoordSystem xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="" xmlns:psr="http://voparis-europlanet.obspm.fr/xml/PSR/v1.0" xmlns:stc="http://www.ivoa.net/xml/STC/stc-v1.30.xsd">
  <stc:CoordFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,unbounded}</stc:CoordFrame>
  <stc:TimeFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</stc:TimeFrame>
  <stc:SpaceFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</stc:SpaceFrame>
  <stc:SpectralFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</stc:SpectralFrame>
  <stc:RedshiftFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="" value_type="VELOCITY">{0,1}</stc:RedshiftFrame>
  <psr:particleFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</psr:particleFrame>
  <psr:otherFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</psr:otherFrame>
</psr:extendCoordSystem>
Attributes
QName Type Fixed Default Use Annotation
IDREF_type xs:string optional
ID_type xs:string optional
id xs:ID optional
idref xs:IDREF optional
ucd xs:string optional
xlink:href xs:anyURI optional
xlink:type restriction of xs:NMTOKEN simple optional
Source

<xs:element name="extendCoordSystem" type="psr:CoordSysType" minOccurs="0"/>

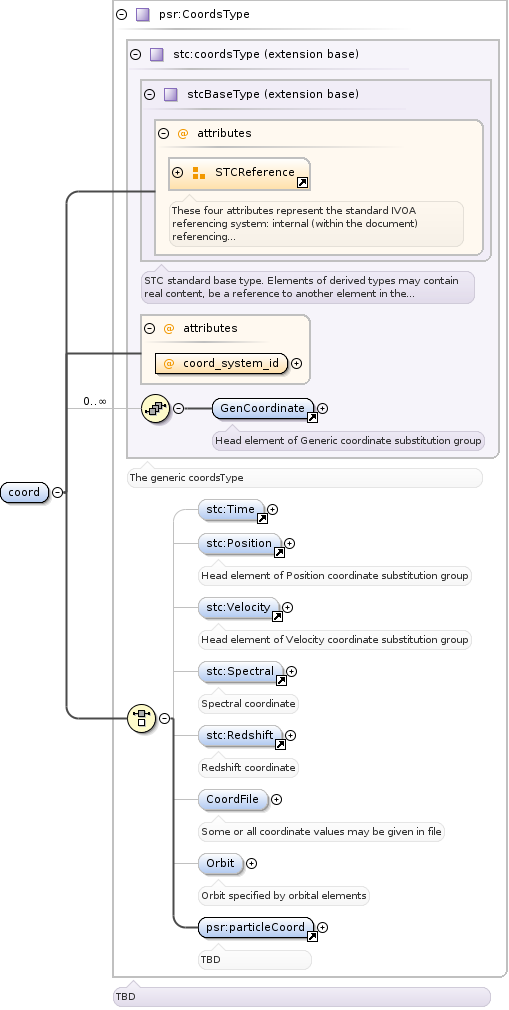

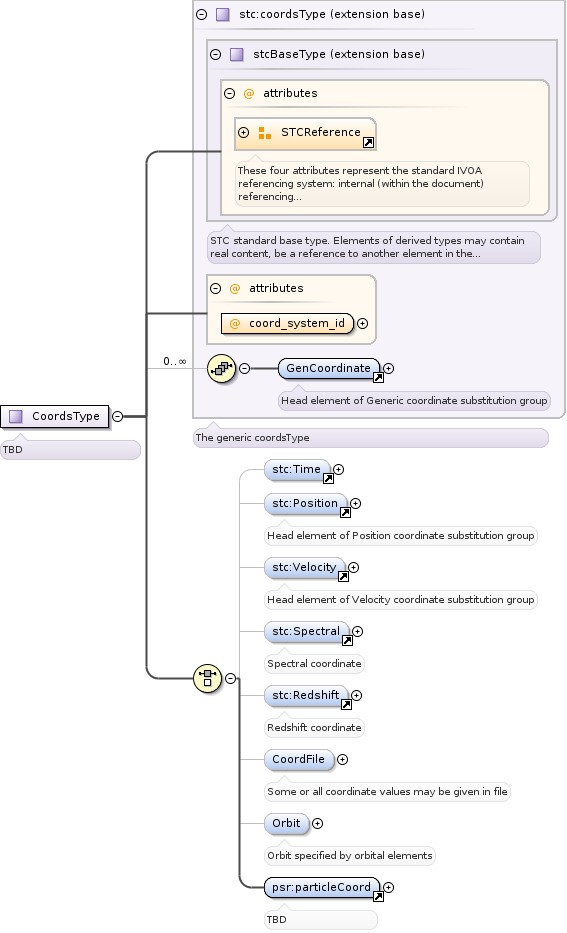

Element psr:LocationType / psr:coord
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram stc-v1_30_xsd.tmp#STCReference stc-v1_30_xsd.tmp#stcBaseType stc-v1_30_xsd.tmp#coordsType_coord_system_id stc-v1_30_xsd.tmp#GenCoordinate stc-v1_30_xsd.tmp#coordsType stc-v1_30_xsd.tmp#Time stc-v1_30_xsd.tmp#Position stc-v1_30_xsd.tmp#Velocity stc-v1_30_xsd.tmp#Spectral stc-v1_30_xsd.tmp#Redshift CoordSys_xsd.tmp#CoordsType_CoordFile CoordSys_xsd.tmp#CoordsType_Orbit CoordSys_xsd.tmp#particleCoord CoordSys_xsd.tmp#CoordsType
Type psr:CoordsType
Type hierarchy
Properties
content: complex
maxOccurs: unbounded
Model GenCoordinate , (Time{0,1} | Position{0,1} | Velocity{0,1} | Spectral{0,1} | Redshift{0,1} | psr:CoordFile{0,1} | psr:Orbit{0,1} | psr:particleCoord)
Children GenCoordinate, Position, Redshift, Spectral, Time, Velocity, psr:CoordFile, psr:Orbit, psr:particleCoord
Instance

<psr:coord coord_system_id="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="" xmlns:psr="http://voparis-europlanet.obspm.fr/xml/PSR/v1.0" xmlns:stc="http://www.ivoa.net/xml/STC/stc-v1.30.xsd">
  <stc:GenCoordinate frame_id="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{1,1}</stc:GenCoordinate>
  <stc:Time coord_system_id="" frame_id="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="" unit="s">{0,1}</stc:Time>
  <stc:Position frame_id="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</stc:Position>
  <stc:Velocity frame_id="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</stc:Velocity>
  <stc:Spectral coord_system_id="" frame_id="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="" unit="">{0,1}</stc:Spectral>
  <stc:Redshift coord_system_id="" frame_id="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="" unit="" vel_time_unit="">{0,1}</stc:Redshift>
  <psr:CoordFile frame_id="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</psr:CoordFile>
  <psr:Orbit frame_id="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</psr:Orbit>
  <psr:particleCoord frame_id="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{1,1}</psr:particleCoord>
</psr:coord>
Attributes
QName Type Fixed Default Use Annotation
IDREF_type xs:string optional
ID_type xs:string optional
coord_system_id xs:IDREF required
id xs:ID optional
idref xs:IDREF optional
ucd xs:string optional
xlink:href xs:anyURI optional
xlink:type restriction of xs:NMTOKEN simple optional
Source

<xs:element name="coord" type="psr:CoordsType" maxOccurs="unbounded"/>
Element psr:CoordsType / psr:CoordFile
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Annotations

Some or all coordinate values may be given in file
Diagram
Diagram stc-v1_30_xsd.tmp#STCReference stc-v1_30_xsd.tmp#stcBaseType stc-v1_30_xsd.tmp#coordinateType_frame_id stc-v1_30_xsd.tmp#coordinateType_Name stc-v1_30_xsd.tmp#coordinateType stc-v1_30_xsd.tmp#astroCoordsFileType_FITSFile stc-v1_30_xsd.tmp#astroCoordsFileType_FITSTime stc-v1_30_xsd.tmp#astroCoordsFileType_FITSPosition stc-v1_30_xsd.tmp#astroCoordsFileType_FITSVelocity stc-v1_30_xsd.tmp#astroCoordsFileType_FITSSpectral stc-v1_30_xsd.tmp#astroCoordsFileType_FITSRedshift stc-v1_30_xsd.tmp#astroCoordsFileType
Type astroCoordsFileType
Type hierarchy
Properties
content: complex
minOccurs: 0
nillable: true
Model Name{0,1} , FITSFile , FITSTime{0,1} , FITSPosition{0,1} , FITSVelocity{0,1} , FITSSpectral{0,1} , FITSRedshift{0,1}
Children FITSFile, FITSPosition, FITSRedshift, FITSSpectral, FITSTime, FITSVelocity, Name
Instance

<psr:CoordFile frame_id="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="" xmlns:psr="http://voparis-europlanet.obspm.fr/xml/PSR/v1.0" xmlns:stc="http://www.ivoa.net/xml/STC/stc-v1.30.xsd">
  <stc:Name>{0,1}</stc:Name>
  <stc:FITSFile hdu_name="" hdu_num="">{1,1}</stc:FITSFile>
  <stc:FITSTime>{0,1}</stc:FITSTime>
  <stc:FITSPosition>{0,1}</stc:FITSPosition>
  <stc:FITSVelocity>{0,1}</stc:FITSVelocity>
  <stc:FITSSpectral>{0,1}</stc:FITSSpectral>
  <stc:FITSRedshift>{0,1}</stc:FITSRedshift>
</psr:CoordFile>
Attributes
QName Type Fixed Default Use Annotation
IDREF_type xs:string optional
ID_type xs:string optional
frame_id xs:IDREF optional
id xs:ID optional
idref xs:IDREF optional
ucd xs:string optional
xlink:href xs:anyURI optional
xlink:type restriction of xs:NMTOKEN simple optional
Source

<xs:element name="CoordFile" type="stc:astroCoordsFileType" nillable="true" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Some or all coordinate values may be given in file</xs:documentation>
  </xs:annotation>
</xs:element>
Element psr:CoordsType / psr:Orbit
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Annotations

Orbit specified by orbital elements
Diagram
Diagram stc-v1_30_xsd.tmp#STCReference stc-v1_30_xsd.tmp#stcBaseType stc-v1_30_xsd.tmp#coordinateType_frame_id stc-v1_30_xsd.tmp#coordinateType_Name stc-v1_30_xsd.tmp#coordinateType stc-v1_30_xsd.tmp#orbitType_a stc-v1_30_xsd.tmp#orbitType_q stc-v1_30_xsd.tmp#orbitType_e stc-v1_30_xsd.tmp#orbitType_i stc-v1_30_xsd.tmp#orbitType_Node stc-v1_30_xsd.tmp#orbitType_Aop stc-v1_30_xsd.tmp#orbitType_M stc-v1_30_xsd.tmp#orbitType_P stc-v1_30_xsd.tmp#orbitType_T stc-v1_30_xsd.tmp#orbitType
Type orbitType
Type hierarchy
Properties
content: complex
minOccurs: 0
nillable: true
Model Name{0,1} , (a | q) , e , i , Node , Aop , M{0,1} , P{0,1} , T
Children Aop, M, Name, Node, P, T, a, e, i, q
Instance

<psr:Orbit frame_id="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="" xmlns:psr="http://voparis-europlanet.obspm.fr/xml/PSR/v1.0" xmlns:stc="http://www.ivoa.net/xml/STC/stc-v1.30.xsd">
  <stc:Name>{0,1}</stc:Name>
  <stc:a gen_unit="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" pos_angle_unit="" pos_unit="" spectral_unit="" time_unit="" xlink:type="simple" ucd="" unit="AU" vel_time_unit="">{1,1}</stc:a>
  <stc:q gen_unit="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" pos_angle_unit="" pos_unit="" spectral_unit="" time_unit="" xlink:type="simple" ucd="" unit="AU" vel_time_unit="">{1,1}</stc:q>
  <stc:e gen_unit="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" pos_angle_unit="" pos_unit="" spectral_unit="" time_unit="" xlink:type="simple" ucd="" vel_time_unit="">{1,1}</stc:e>
  <stc:i gen_unit="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" pos_angle_unit="" pos_unit="" spectral_unit="" time_unit="" xlink:type="simple" ucd="" unit="deg" vel_time_unit="">{1,1}</stc:i>
  <stc:Node gen_unit="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" pos_angle_unit="" pos_unit="" spectral_unit="" time_unit="" xlink:type="simple" ucd="" unit="deg" vel_time_unit="">{1,1}</stc:Node>
  <stc:Aop gen_unit="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" pos_angle_unit="" pos_unit="" spectral_unit="" time_unit="" xlink:type="simple" ucd="" unit="deg" vel_time_unit="">{1,1}</stc:Aop>
  <stc:M gen_unit="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" pos_angle_unit="" pos_unit="" spectral_unit="" time_unit="" xlink:type="simple" ucd="" unit="deg" vel_time_unit="">{0,1}</stc:M>
  <stc:P gen_unit="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" pos_angle_unit="" pos_unit="" spectral_unit="" time_unit="" xlink:type="simple" ucd="" unit="d" vel_time_unit="">{0,1}</stc:P>
  <stc:T>{1,1}</stc:T>
</psr:Orbit>
Attributes
QName Type Fixed Default Use Annotation
IDREF_type xs:string optional
ID_type xs:string optional
frame_id xs:IDREF optional
id xs:ID optional
idref xs:IDREF optional
ucd xs:string optional
xlink:href xs:anyURI optional
xlink:type restriction of xs:NMTOKEN simple optional
Source

<xs:element name="Orbit" type="stc:orbitType" nillable="true" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Orbit specified by orbital elements</xs:documentation>
  </xs:annotation>
</xs:element>

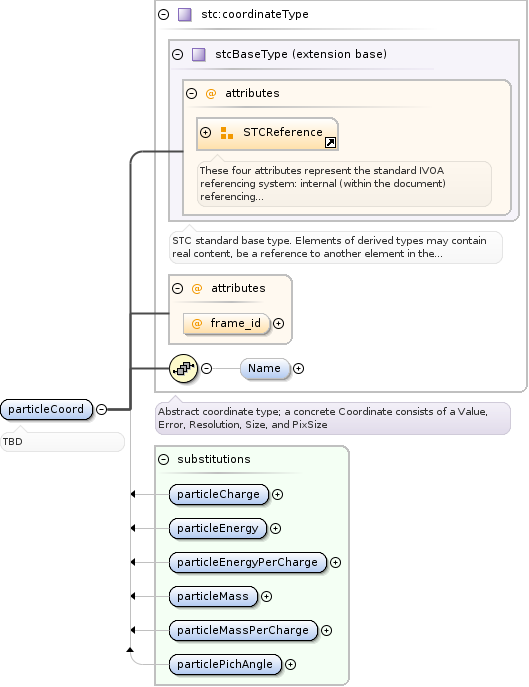

Element psr:particleCoord
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Annotations

TBD
Diagram
Diagram stc-v1_30_xsd.tmp#STCReference stc-v1_30_xsd.tmp#stcBaseType stc-v1_30_xsd.tmp#coordinateType_frame_id stc-v1_30_xsd.tmp#coordinateType_Name stc-v1_30_xsd.tmp#coordinateType CoordSys_xsd.tmp#particleCharge CoordSys_xsd.tmp#particleEnergy CoordSys_xsd.tmp#particleEnergyPerCharge CoordSys_xsd.tmp#particleMass CoordSys_xsd.tmp#particleMassPerCharge CoordSys_xsd.tmp#particlePichAngle
Type coordinateType
Type hierarchy
Properties
content: complex
abstract: true
Substitution Group
Used by
Complex Type psr:CoordsType
Model Name{0,1}
Children Name
Instance

<psr:particleCoord frame_id="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="" xmlns:psr="http://voparis-europlanet.obspm.fr/xml/PSR/v1.0" xmlns:stc="http://www.ivoa.net/xml/STC/stc-v1.30.xsd">
  <stc:Name>{0,1}</stc:Name>
</psr:particleCoord>
Attributes
QName Type Fixed Default Use Annotation
IDREF_type xs:string optional
ID_type xs:string optional
frame_id xs:IDREF optional
id xs:ID optional
idref xs:IDREF optional
ucd xs:string optional
xlink:href xs:anyURI optional
xlink:type restriction of xs:NMTOKEN simple optional
Source

<xs:element abstract="true" name="particleCoord" type="stc:coordinateType">
  <xs:annotation>
    <xs:documentation>TBD</xs:documentation>
  </xs:annotation>
</xs:element>
Element psr:LocationType / psr:units
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram ExtendedUnits_xsd.tmp#ExtendedUnit_expression ExtendedUnits_xsd.tmp#ExtendedUnit_dimEquation ExtendedUnits_xsd.tmp#ExtendedUnit_scaleSI ExtendedUnits_xsd.tmp#ExtendedUnit
Type psr:ExtendedUnit
Properties
content: complex
minOccurs: 0
Model psr:expression , psr:dimEquation , psr:scaleSI
Children psr:dimEquation, psr:expression, psr:scaleSI
Instance

<psr:units xmlns:psr="http://voparis-europlanet.obspm.fr/xml/PSR/v1.0">
  <psr:expression>{1,1}</psr:expression>
  <psr:dimEquation>{1,1}</psr:dimEquation>
  <psr:scaleSI>{1,1}</psr:scaleSI>
</psr:units>
Source

<xs:element name="units" type="psr:ExtendedUnit" minOccurs="0"/>

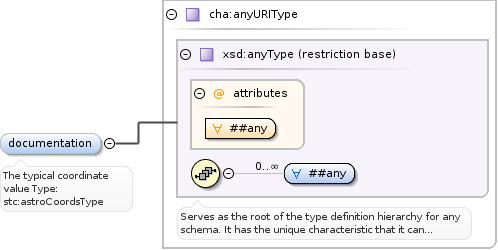

Element psr:LocationType / psr:documentation
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Annotations

The typical coordinate value Type: stc:astroCoordsType
Diagram
Diagram Characterisation-v1_11_xsd.tmp#anyURIType
Type cha:anyURIType
Properties
content: complex
minOccurs: 0
Source

<xs:element name="documentation" type="cha:anyURIType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The typical coordinate value Type: stc:astroCoordsType</xs:documentation>
  </xs:annotation>
</xs:element>

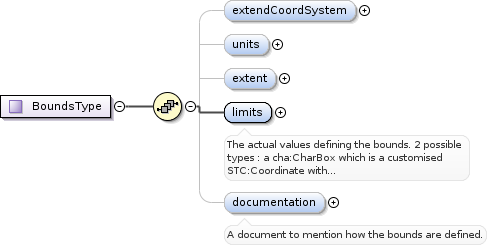

Element psr:CoverageType / psr:bounds
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Annotations

The limits of the observation on this axis
Diagram
Diagram CoordSys_xsd.tmp#BoundsType_extendCoordSystem CoordSys_xsd.tmp#BoundsType_units CoordSys_xsd.tmp#BoundsType_extent CoordSys_xsd.tmp#BoundsType_limits CoordSys_xsd.tmp#BoundsType_documentation CoordSys_xsd.tmp#BoundsType
Type psr:BoundsType
Properties
content: complex
minOccurs: 1
Model psr:extendCoordSystem{0,1} , psr:units{0,1} , psr:extent{0,1} , psr:limits , psr:documentation{0,1}
Children psr:documentation, psr:extendCoordSystem, psr:extent, psr:limits, psr:units
Instance

<psr:bounds xmlns:psr="http://voparis-europlanet.obspm.fr/xml/PSR/v1.0">
  <psr:extendCoordSystem xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</psr:extendCoordSystem>
  <psr:units>{0,1}</psr:units>
  <psr:extent gen_unit="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" pos_angle_unit="" pos_unit="" spectral_unit="" time_unit="" xlink:type="simple" ucd="" vel_time_unit="">{0,1}</psr:extent>
  <psr:limits>{1,1}</psr:limits>
  <psr:documentation>{0,1}</psr:documentation>
</psr:bounds>
Source

<xs:element name="bounds" type="psr:BoundsType" minOccurs="1">
  <xs:annotation>
    <xs:documentation>The limits of the observation on this axis</xs:documentation>
  </xs:annotation>
</xs:element>
Element psr:BoundsType / psr:extendCoordSystem
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram stc-v1_30_xsd.tmp#STCReference stc-v1_30_xsd.tmp#stcBaseType stc-v1_30_xsd.tmp#CoordFrame stc-v1_30_xsd.tmp#coordSysType stc-v1_30_xsd.tmp#TimeFrame stc-v1_30_xsd.tmp#SpaceFrame stc-v1_30_xsd.tmp#SpectralFrame stc-v1_30_xsd.tmp#RedshiftFrame CoordSys_xsd.tmp#CoordSysType_particleFrame CoordSys_xsd.tmp#CoordSysType_otherFrame CoordSys_xsd.tmp#CoordSysType
Type psr:CoordSysType
Type hierarchy
Properties
content: complex
minOccurs: 0
Model CoordFrame* , (TimeFrame{0,1} | SpaceFrame{0,1} | SpectralFrame{0,1} | RedshiftFrame{0,1} | psr:particleFrame{0,1} | psr:otherFrame{0,1})
Children CoordFrame, RedshiftFrame, SpaceFrame, SpectralFrame, TimeFrame, psr:otherFrame, psr:particleFrame
Instance

<psr:extendCoordSystem xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="" xmlns:psr="http://voparis-europlanet.obspm.fr/xml/PSR/v1.0" xmlns:stc="http://www.ivoa.net/xml/STC/stc-v1.30.xsd">
  <stc:CoordFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,unbounded}</stc:CoordFrame>
  <stc:TimeFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</stc:TimeFrame>
  <stc:SpaceFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</stc:SpaceFrame>
  <stc:SpectralFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</stc:SpectralFrame>
  <stc:RedshiftFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="" value_type="VELOCITY">{0,1}</stc:RedshiftFrame>
  <psr:particleFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</psr:particleFrame>
  <psr:otherFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</psr:otherFrame>
</psr:extendCoordSystem>
Attributes
QName Type Fixed Default Use Annotation
IDREF_type xs:string optional
ID_type xs:string optional
id xs:ID optional
idref xs:IDREF optional
ucd xs:string optional
xlink:href xs:anyURI optional
xlink:type restriction of xs:NMTOKEN simple optional
Source

<xs:element name="extendCoordSystem" type="psr:CoordSysType" minOccurs="0"/>
Element psr:BoundsType / psr:units
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram ExtendedUnits_xsd.tmp#ExtendedUnit_expression ExtendedUnits_xsd.tmp#ExtendedUnit_dimEquation ExtendedUnits_xsd.tmp#ExtendedUnit_scaleSI ExtendedUnits_xsd.tmp#ExtendedUnit
Type psr:ExtendedUnit
Properties
content: complex
minOccurs: 0
Model psr:expression , psr:dimEquation , psr:scaleSI
Children psr:dimEquation, psr:expression, psr:scaleSI
Instance

<psr:units xmlns:psr="http://voparis-europlanet.obspm.fr/xml/PSR/v1.0">
  <psr:expression>{1,1}</psr:expression>
  <psr:dimEquation>{1,1}</psr:dimEquation>
  <psr:scaleSI>{1,1}</psr:scaleSI>
</psr:units>
Source

<xs:element name="units" type="psr:ExtendedUnit" minOccurs="0"/>

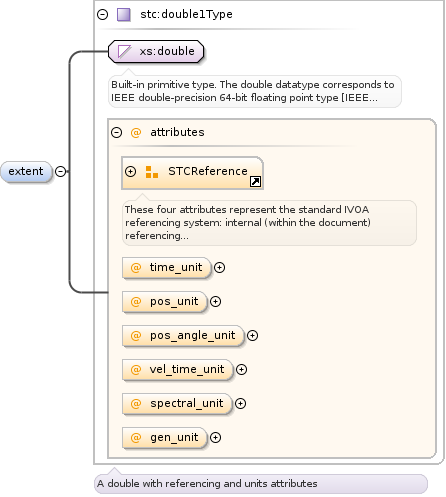

Element psr:BoundsType / psr:extent
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram stc-v1_30_xsd.tmp#STCReference stc-v1_30_xsd.tmp#double1Type_time_unit stc-v1_30_xsd.tmp#double1Type_pos_unit stc-v1_30_xsd.tmp#double1Type_pos_angle_unit stc-v1_30_xsd.tmp#double1Type_vel_time_unit stc-v1_30_xsd.tmp#double1Type_spectral_unit stc-v1_30_xsd.tmp#double1Type_gen_unit stc-v1_30_xsd.tmp#double1Type
Type double1Type
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
IDREF_type xs:string optional
ID_type xs:string optional
gen_unit unitType optional
id xs:ID optional
idref xs:IDREF optional
pos_angle_unit angleUnitType optional
pos_unit posUnitType optional
spectral_unit spectralUnitType optional
time_unit timeUnitType optional
ucd xs:string optional
vel_time_unit velTimeUnitType optional
xlink:href xs:anyURI optional
xlink:type restriction of xs:NMTOKEN simple optional
Source

<xs:element name="extent" type="stc:double1Type" minOccurs="0"/>
Element psr:BoundsType / psr:limits
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Annotations

The actual values defining the bounds. 2 possible types : a
cha:CharBox which is a customised STC:Coordinate with mandatory value and
size or an STC:Interval
Diagram
Diagram Characterisation-v1_11_xsd.tmp#CharCoordAreaType_coord_system_id Characterisation-v1_11_xsd.tmp#CharCoordAreaType_CharBox Characterisation-v1_11_xsd.tmp#Interval Characterisation-v1_11_xsd.tmp#CharCoordAreaType
Type cha:CharCoordAreaType
Type hierarchy
Properties
content: complex
Model cha:CharBox | cha:Interval
Children cha:CharBox, cha:Interval
Instance

<psr:limits xmlns:psr="http://voparis-europlanet.obspm.fr/xml/PSR/v1.0" xmlns:cha="http://www.ivoa.net/xml/Characterisation/Characterisation-v1.11.xsd">
  <cha:CharBox>{1,1}</cha:CharBox>
  <cha:Interval>{1,1}</cha:Interval>
</psr:limits>
Source

<xs:element name="limits" type="cha:CharCoordAreaType">
  <xs:annotation>
    <xs:documentation>The actual values defining the bounds. 2 possible types : a cha:CharBox which is a customised STC:Coordinate with mandatory value and size or an STC:Interval</xs:documentation>
  </xs:annotation>
</xs:element>

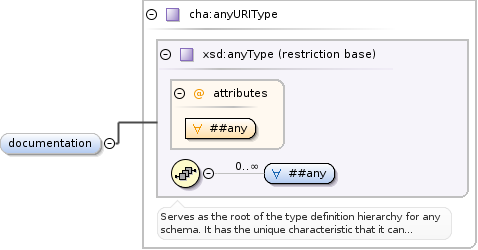

Element psr:BoundsType / psr:documentation
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Annotations

A document to mention how the bounds are defined.
Diagram
Diagram Characterisation-v1_11_xsd.tmp#anyURIType
Type cha:anyURIType
Properties
content: complex
minOccurs: 0
Source

<xs:element name="documentation" type="cha:anyURIType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>A document to mention how the bounds are defined.</xs:documentation>
  </xs:annotation>
</xs:element>

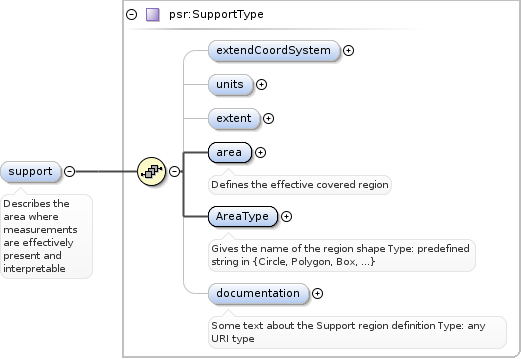

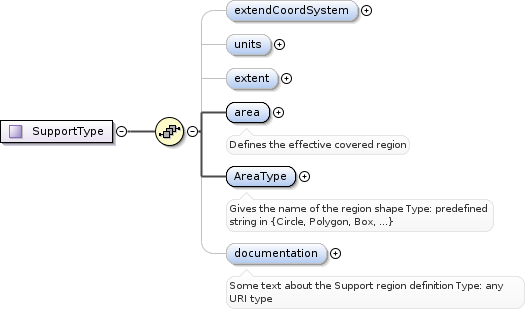

Element psr:CoverageType / psr:support
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Annotations

Describes the area where measurements are effectively present and interpretable
Diagram
Diagram CoordSys_xsd.tmp#SupportType_extendCoordSystem CoordSys_xsd.tmp#SupportType_units CoordSys_xsd.tmp#SupportType_extent CoordSys_xsd.tmp#SupportType_area CoordSys_xsd.tmp#SupportType_AreaType CoordSys_xsd.tmp#SupportType_documentation CoordSys_xsd.tmp#SupportType
Type psr:SupportType
Properties
content: complex
minOccurs: 0
Model psr:extendCoordSystem{0,1} , psr:units{0,1} , psr:extent{0,1} , psr:area , psr:AreaType , psr:documentation{0,1}
Children psr:AreaType, psr:area, psr:documentation, psr:extendCoordSystem, psr:extent, psr:units
Instance

<psr:support xmlns:psr="http://voparis-europlanet.obspm.fr/xml/PSR/v1.0">
  <psr:extendCoordSystem xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</psr:extendCoordSystem>
  <psr:units>{0,1}</psr:units>
  <psr:extent gen_unit="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" pos_angle_unit="" pos_unit="" spectral_unit="" time_unit="" xlink:type="simple" ucd="" vel_time_unit="">{0,1}</psr:extent>
  <psr:area coord_system_id="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{1,1}</psr:area>
  <psr:AreaType>{1,1}</psr:AreaType>
  <psr:documentation>{0,1}</psr:documentation>
</psr:support>
Source

<xs:element name="support" type="psr:SupportType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Describes the area where measurements are effectively present and interpretable</xs:documentation>
  </xs:annotation>
</xs:element>
Element psr:SupportType / psr:extendCoordSystem
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram stc-v1_30_xsd.tmp#STCReference stc-v1_30_xsd.tmp#stcBaseType stc-v1_30_xsd.tmp#CoordFrame stc-v1_30_xsd.tmp#coordSysType stc-v1_30_xsd.tmp#TimeFrame stc-v1_30_xsd.tmp#SpaceFrame stc-v1_30_xsd.tmp#SpectralFrame stc-v1_30_xsd.tmp#RedshiftFrame CoordSys_xsd.tmp#CoordSysType_particleFrame CoordSys_xsd.tmp#CoordSysType_otherFrame CoordSys_xsd.tmp#CoordSysType
Type psr:CoordSysType
Type hierarchy
Properties
content: complex
minOccurs: 0
Model CoordFrame* , (TimeFrame{0,1} | SpaceFrame{0,1} | SpectralFrame{0,1} | RedshiftFrame{0,1} | psr:particleFrame{0,1} | psr:otherFrame{0,1})
Children CoordFrame, RedshiftFrame, SpaceFrame, SpectralFrame, TimeFrame, psr:otherFrame, psr:particleFrame
Instance

<psr:extendCoordSystem xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="" xmlns:psr="http://voparis-europlanet.obspm.fr/xml/PSR/v1.0" xmlns:stc="http://www.ivoa.net/xml/STC/stc-v1.30.xsd">
  <stc:CoordFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,unbounded}</stc:CoordFrame>
  <stc:TimeFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</stc:TimeFrame>
  <stc:SpaceFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</stc:SpaceFrame>
  <stc:SpectralFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</stc:SpectralFrame>
  <stc:RedshiftFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="" value_type="VELOCITY">{0,1}</stc:RedshiftFrame>
  <psr:particleFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</psr:particleFrame>
  <psr:otherFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</psr:otherFrame>
</psr:extendCoordSystem>
Attributes
QName Type Fixed Default Use Annotation
IDREF_type xs:string optional
ID_type xs:string optional
id xs:ID optional
idref xs:IDREF optional
ucd xs:string optional
xlink:href xs:anyURI optional
xlink:type restriction of xs:NMTOKEN simple optional
Source

<xs:element name="extendCoordSystem" type="psr:CoordSysType" minOccurs="0"/>
Element psr:SupportType / psr:units
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram ExtendedUnits_xsd.tmp#ExtendedUnit_expression ExtendedUnits_xsd.tmp#ExtendedUnit_dimEquation ExtendedUnits_xsd.tmp#ExtendedUnit_scaleSI ExtendedUnits_xsd.tmp#ExtendedUnit
Type psr:ExtendedUnit
Properties
content: complex
minOccurs: 0
Model psr:expression , psr:dimEquation , psr:scaleSI
Children psr:dimEquation, psr:expression, psr:scaleSI
Instance

<psr:units xmlns:psr="http://voparis-europlanet.obspm.fr/xml/PSR/v1.0">
  <psr:expression>{1,1}</psr:expression>
  <psr:dimEquation>{1,1}</psr:dimEquation>
  <psr:scaleSI>{1,1}</psr:scaleSI>
</psr:units>
Source

<xs:element name="units" type="psr:ExtendedUnit" minOccurs="0"/>
Element psr:SupportType / psr:extent
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram stc-v1_30_xsd.tmp#STCReference stc-v1_30_xsd.tmp#double1Type_time_unit stc-v1_30_xsd.tmp#double1Type_pos_unit stc-v1_30_xsd.tmp#double1Type_pos_angle_unit stc-v1_30_xsd.tmp#double1Type_vel_time_unit stc-v1_30_xsd.tmp#double1Type_spectral_unit stc-v1_30_xsd.tmp#double1Type_gen_unit stc-v1_30_xsd.tmp#double1Type
Type double1Type
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
IDREF_type xs:string optional
ID_type xs:string optional
gen_unit unitType optional
id xs:ID optional
idref xs:IDREF optional
pos_angle_unit angleUnitType optional
pos_unit posUnitType optional
spectral_unit spectralUnitType optional
time_unit timeUnitType optional
ucd xs:string optional
vel_time_unit velTimeUnitType optional
xlink:href xs:anyURI optional
xlink:type restriction of xs:NMTOKEN simple optional
Source

<xs:element name="extent" type="stc:double1Type" minOccurs="0"/>
Element psr:SupportType / psr:area
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Annotations

Defines the effective covered region
Diagram
Diagram stc-v1_30_xsd.tmp#STCReference stc-v1_30_xsd.tmp#stcBaseType stc-v1_30_xsd.tmp#coordAreaType_coord_system_id stc-v1_30_xsd.tmp#CoordInterval stc-v1_30_xsd.tmp#coordAreaType stc-v1_30_xsd.tmp#astroCoordAreaType_TimeInterval stc-v1_30_xsd.tmp#PositionInterval stc-v1_30_xsd.tmp#VelocityInterval stc-v1_30_xsd.tmp#astroCoordAreaType_SpectralInterval stc-v1_30_xsd.tmp#astroCoordAreaType_RedshiftInterval stc-v1_30_xsd.tmp#astroCoordAreaType
Type astroCoordAreaType
Type hierarchy
Properties
content: complex
Model CoordInterval , TimeInterval* , PositionInterval{0,1} , VelocityInterval* , SpectralInterval* , RedshiftInterval*
Children CoordInterval, PositionInterval, RedshiftInterval, SpectralInterval, TimeInterval, VelocityInterval
Instance

<psr:area coord_system_id="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="" xmlns:psr="http://voparis-europlanet.obspm.fr/xml/PSR/v1.0" xmlns:stc="http://www.ivoa.net/xml/STC/stc-v1.30.xsd">
  <stc:CoordInterval fill_factor="1.0" frame_id="" hi_include="true" xlink:href="" id="" ID_type="" idref="" IDREF_type="" lo_include="true" xlink:type="simple" ucd="">{1,1}</stc:CoordInterval>
  <stc:TimeInterval fill_factor="1.0" frame_id="" hi_include="true" xlink:href="" id="" ID_type="" idref="" IDREF_type="" lo_include="true" xlink:type="simple" ucd="">{0,unbounded}</stc:TimeInterval>
  <stc:PositionInterval fill_factor="1.0" frame_id="" hi_include="true" xlink:href="" id="" ID_type="" idref="" IDREF_type="" lo_include="true" xlink:type="simple" ucd="">{0,1}</stc:PositionInterval>
  <stc:VelocityInterval fill_factor="1.0" frame_id="" hi_include="true" xlink:href="" id="" ID_type="" idref="" IDREF_type="" lo_include="true" xlink:type="simple" ucd="">{0,unbounded}</stc:VelocityInterval>
  <stc:SpectralInterval fill_factor="1.0" frame_id="" hi_include="true" xlink:href="" id="" ID_type="" idref="" IDREF_type="" lo_include="true" xlink:type="simple" ucd="" unit="">{0,unbounded}</stc:SpectralInterval>
  <stc:RedshiftInterval fill_factor="1.0" frame_id="" hi_include="true" xlink:href="" id="" ID_type="" idref="" IDREF_type="" lo_include="true" xlink:type="simple" ucd="" unit="" vel_time_unit="">{0,unbounded}</stc:RedshiftInterval>
</psr:area>
Attributes
QName Type Fixed Default Use Annotation
IDREF_type xs:string optional
ID_type xs:string optional
coord_system_id xs:IDREF required
id xs:ID optional
idref xs:IDREF optional
ucd xs:string optional
xlink:href xs:anyURI optional
xlink:type restriction of xs:NMTOKEN simple optional
Source

<xs:element name="area" type="stc:astroCoordAreaType">
  <xs:annotation>
    <xs:documentation>Defines the effective covered region</xs:documentation>
  </xs:annotation>
</xs:element>

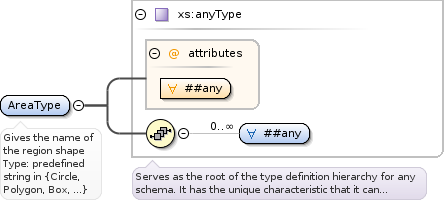

Element psr:SupportType / psr:AreaType
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Annotations

Gives the name of the region shape Type: predefined string in
{Circle, Polygon, Box, ...}
Diagram
Diagram
Source

<xs:element name="AreaType" type="xs:anyType">
  <xs:annotation>
    <xs:documentation>Gives the name of the region shape Type: predefined string in {Circle, Polygon, Box, ...}</xs:documentation>
  </xs:annotation>
</xs:element>

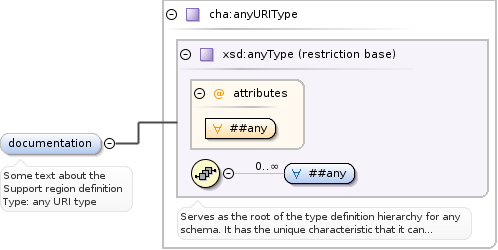

Element psr:SupportType / psr:documentation
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Annotations

Some text about the Support region definition Type: any URI type
Diagram
Diagram Characterisation-v1_11_xsd.tmp#anyURIType
Type cha:anyURIType
Properties
content: complex
minOccurs: 0
Source

<xs:element name="documentation" type="cha:anyURIType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Some text about the Support region definition Type: any URI type</xs:documentation>
  </xs:annotation>
</xs:element>

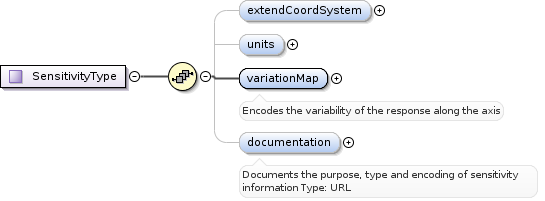

Element psr:CoverageType / psr:sensitivity
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Annotations

encodes the variability of response along the axis
Diagram
Diagram CoordSys_xsd.tmp#SensitivityType_extendCoordSystem CoordSys_xsd.tmp#SensitivityType_units CoordSys_xsd.tmp#SensitivityType_variationMap CoordSys_xsd.tmp#SensitivityType_documentation CoordSys_xsd.tmp#SensitivityType
Type psr:SensitivityType
Properties
content: complex
minOccurs: 0
Model psr:extendCoordSystem{0,1} , psr:units{0,1} , psr:variationMap , psr:documentation{0,1}
Children psr:documentation, psr:extendCoordSystem, psr:units, psr:variationMap
Instance

<psr:sensitivity xmlns:psr="http://voparis-europlanet.obspm.fr/xml/PSR/v1.0">
  <psr:extendCoordSystem xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</psr:extendCoordSystem>
  <psr:units>{0,1}</psr:units>
  <psr:variationMap>{1,1}</psr:variationMap>
  <psr:documentation>{0,1}</psr:documentation>
</psr:sensitivity>
Source

<xs:element name="sensitivity" type="psr:SensitivityType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>encodes the variability of response along the axis</xs:documentation>
  </xs:annotation>
</xs:element>
Element psr:SensitivityType / psr:extendCoordSystem
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram stc-v1_30_xsd.tmp#STCReference stc-v1_30_xsd.tmp#stcBaseType stc-v1_30_xsd.tmp#CoordFrame stc-v1_30_xsd.tmp#coordSysType stc-v1_30_xsd.tmp#TimeFrame stc-v1_30_xsd.tmp#SpaceFrame stc-v1_30_xsd.tmp#SpectralFrame stc-v1_30_xsd.tmp#RedshiftFrame CoordSys_xsd.tmp#CoordSysType_particleFrame CoordSys_xsd.tmp#CoordSysType_otherFrame CoordSys_xsd.tmp#CoordSysType
Type psr:CoordSysType
Type hierarchy
Properties
content: complex
minOccurs: 0
Model CoordFrame* , (TimeFrame{0,1} | SpaceFrame{0,1} | SpectralFrame{0,1} | RedshiftFrame{0,1} | psr:particleFrame{0,1} | psr:otherFrame{0,1})
Children CoordFrame, RedshiftFrame, SpaceFrame, SpectralFrame, TimeFrame, psr:otherFrame, psr:particleFrame
Instance

<psr:extendCoordSystem xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="" xmlns:psr="http://voparis-europlanet.obspm.fr/xml/PSR/v1.0" xmlns:stc="http://www.ivoa.net/xml/STC/stc-v1.30.xsd">
  <stc:CoordFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,unbounded}</stc:CoordFrame>
  <stc:TimeFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</stc:TimeFrame>
  <stc:SpaceFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</stc:SpaceFrame>
  <stc:SpectralFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</stc:SpectralFrame>
  <stc:RedshiftFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="" value_type="VELOCITY">{0,1}</stc:RedshiftFrame>
  <psr:particleFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</psr:particleFrame>
  <psr:otherFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</psr:otherFrame>
</psr:extendCoordSystem>
Attributes
QName Type Fixed Default Use Annotation
IDREF_type xs:string optional
ID_type xs:string optional
id xs:ID optional
idref xs:IDREF optional
ucd xs:string optional
xlink:href xs:anyURI optional
xlink:type restriction of xs:NMTOKEN simple optional
Source

<xs:element name="extendCoordSystem" type="psr:CoordSysType" minOccurs="0"/>
Element psr:SensitivityType / psr:units
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram ExtendedUnits_xsd.tmp#ExtendedUnit_expression ExtendedUnits_xsd.tmp#ExtendedUnit_dimEquation ExtendedUnits_xsd.tmp#ExtendedUnit_scaleSI ExtendedUnits_xsd.tmp#ExtendedUnit
Type psr:ExtendedUnit
Properties
content: complex
minOccurs: 0
Model psr:expression , psr:dimEquation , psr:scaleSI
Children psr:dimEquation, psr:expression, psr:scaleSI
Instance

<psr:units xmlns:psr="http://voparis-europlanet.obspm.fr/xml/PSR/v1.0">
  <psr:expression>{1,1}</psr:expression>
  <psr:dimEquation>{1,1}</psr:dimEquation>
  <psr:scaleSI>{1,1}</psr:scaleSI>
</psr:units>
Source

<xs:element name="units" type="psr:ExtendedUnit" minOccurs="0"/>
Element psr:SensitivityType / psr:variationMap
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Annotations

Encodes the variability of the response along the axis
Diagram
Diagram Characterisation-v1_11_xsd.tmp#anyURIType
Type cha:anyURIType
Properties
content: complex
Source

<xs:element name="variationMap" type="cha:anyURIType">
  <xs:annotation>
    <xs:documentation>Encodes the variability of the response along the axis</xs:documentation>
  </xs:annotation>
</xs:element>

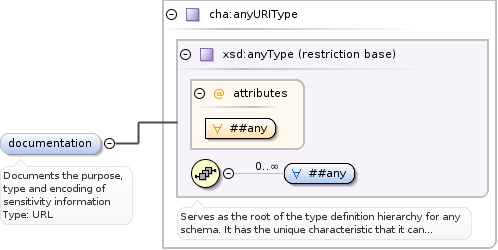

Element psr:SensitivityType / psr:documentation
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Annotations

Documents the purpose, type and encoding of sensitivity information Type: URL
Diagram
Diagram Characterisation-v1_11_xsd.tmp#anyURIType
Type cha:anyURIType
Properties
content: complex
minOccurs: 0
Source

<xs:element name="documentation" type="cha:anyURIType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Documents the purpose, type and encoding of sensitivity information Type: URL</xs:documentation>
  </xs:annotation>
</xs:element>
Element psr:ResolutionType / psr:coordSystem
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram stc-v1_30_xsd.tmp#STCReference stc-v1_30_xsd.tmp#stcBaseType stc-v1_30_xsd.tmp#CoordFrame stc-v1_30_xsd.tmp#coordSysType stc-v1_30_xsd.tmp#TimeFrame stc-v1_30_xsd.tmp#SpaceFrame stc-v1_30_xsd.tmp#SpectralFrame stc-v1_30_xsd.tmp#RedshiftFrame CoordSys_xsd.tmp#CoordSysType_particleFrame CoordSys_xsd.tmp#CoordSysType_otherFrame CoordSys_xsd.tmp#CoordSysType
Type psr:CoordSysType
Type hierarchy
Properties
content: complex
minOccurs: 0
Model CoordFrame* , (TimeFrame{0,1} | SpaceFrame{0,1} | SpectralFrame{0,1} | RedshiftFrame{0,1} | psr:particleFrame{0,1} | psr:otherFrame{0,1})
Children CoordFrame, RedshiftFrame, SpaceFrame, SpectralFrame, TimeFrame, psr:otherFrame, psr:particleFrame
Instance

<psr:coordSystem xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="" xmlns:psr="http://voparis-europlanet.obspm.fr/xml/PSR/v1.0" xmlns:stc="http://www.ivoa.net/xml/STC/stc-v1.30.xsd">
  <stc:CoordFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,unbounded}</stc:CoordFrame>
  <stc:TimeFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</stc:TimeFrame>
  <stc:SpaceFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</stc:SpaceFrame>
  <stc:SpectralFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</stc:SpectralFrame>
  <stc:RedshiftFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="" value_type="VELOCITY">{0,1}</stc:RedshiftFrame>
  <psr:particleFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</psr:particleFrame>
  <psr:otherFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</psr:otherFrame>
</psr:coordSystem>
Attributes
QName Type Fixed Default Use Annotation
IDREF_type xs:string optional
ID_type xs:string optional
id xs:ID optional
idref xs:IDREF optional
ucd xs:string optional
xlink:href xs:anyURI optional
xlink:type restriction of xs:NMTOKEN simple optional
Source

<xs:element name="coordSystem" type="psr:CoordSysType" minOccurs="0"/>
Element psr:ResolutionType / psr:units
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Annotations

This "Units" element is defined from VOUnits documentation. It
differs from the "unit" element of characterizationAxisType.
Diagram
Diagram ExtendedUnits_xsd.tmp#ExtendedUnit_expression ExtendedUnits_xsd.tmp#ExtendedUnit_dimEquation ExtendedUnits_xsd.tmp#ExtendedUnit_scaleSI ExtendedUnits_xsd.tmp#ExtendedUnit
Type psr:ExtendedUnit
Properties
content: complex
minOccurs: 0
Model psr:expression , psr:dimEquation , psr:scaleSI
Children psr:dimEquation, psr:expression, psr:scaleSI
Instance

<psr:units xmlns:psr="http://voparis-europlanet.obspm.fr/xml/PSR/v1.0">
  <psr:expression>{1,1}</psr:expression>
  <psr:dimEquation>{1,1}</psr:dimEquation>
  <psr:scaleSI>{1,1}</psr:scaleSI>
</psr:units>
Source

<xs:element name="units" type="psr:ExtendedUnit" minOccurs="0">
  <xs:annotation>
    <xs:documentation>This "Units" element is defined from VOUnits documentation. It differs from the "unit" element of characterizationAxisType.</xs:documentation>
  </xs:annotation>
</xs:element>
Element psr:ResolutionType / psr:resolutionRefVal
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0

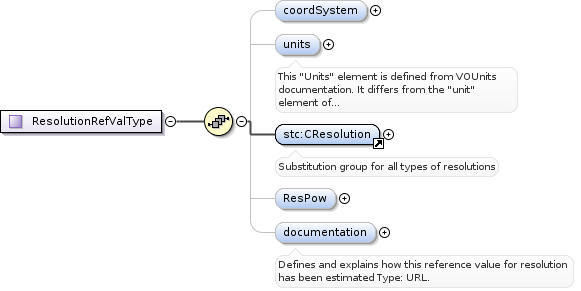

Diagram
Diagram CoordSys_xsd.tmp#ResolutionRefValType_coordSystem CoordSys_xsd.tmp#ResolutionRefValType_units stc-v1_30_xsd.tmp#CResolution CoordSys_xsd.tmp#ResolutionRefValType_ResPow CoordSys_xsd.tmp#ResolutionRefValType_documentation CoordSys_xsd.tmp#ResolutionRefValType
Type psr:ResolutionRefValType
Properties
content: complex
minOccurs: 0
Model psr:coordSystem{0,1} , psr:units{0,1} , CResolution , psr:ResPow{0,1} , psr:documentation{0,1}
Children CResolution, psr:ResPow, psr:coordSystem, psr:documentation, psr:units
Instance

<psr:resolutionRefVal xmlns:psr="http://voparis-europlanet.obspm.fr/xml/PSR/v1.0" xmlns:stc="http://www.ivoa.net/xml/STC/stc-v1.30.xsd">
  <psr:coordSystem xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</psr:coordSystem>
  <psr:units>{0,1}</psr:units>
  <stc:CResolution>{1,1}</stc:CResolution>
  <psr:ResPow gen_unit="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" pos_angle_unit="" pos_unit="" spectral_unit="" time_unit="" xlink:type="simple" ucd="" vel_time_unit="">{0,1}</psr:ResPow>
  <psr:documentation>{0,1}</psr:documentation>
</psr:resolutionRefVal>
Source

<xs:element name="resolutionRefVal" type="psr:ResolutionRefValType" minOccurs="0"/>
Element psr:ResolutionRefValType / psr:coordSystem
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram stc-v1_30_xsd.tmp#STCReference stc-v1_30_xsd.tmp#stcBaseType stc-v1_30_xsd.tmp#CoordFrame stc-v1_30_xsd.tmp#coordSysType stc-v1_30_xsd.tmp#TimeFrame stc-v1_30_xsd.tmp#SpaceFrame stc-v1_30_xsd.tmp#SpectralFrame stc-v1_30_xsd.tmp#RedshiftFrame CoordSys_xsd.tmp#CoordSysType_particleFrame CoordSys_xsd.tmp#CoordSysType_otherFrame CoordSys_xsd.tmp#CoordSysType
Type psr:CoordSysType
Type hierarchy
Properties
content: complex
minOccurs: 0
Model CoordFrame* , (TimeFrame{0,1} | SpaceFrame{0,1} | SpectralFrame{0,1} | RedshiftFrame{0,1} | psr:particleFrame{0,1} | psr:otherFrame{0,1})
Children CoordFrame, RedshiftFrame, SpaceFrame, SpectralFrame, TimeFrame, psr:otherFrame, psr:particleFrame
Instance

<psr:coordSystem xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="" xmlns:psr="http://voparis-europlanet.obspm.fr/xml/PSR/v1.0" xmlns:stc="http://www.ivoa.net/xml/STC/stc-v1.30.xsd">
  <stc:CoordFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,unbounded}</stc:CoordFrame>
  <stc:TimeFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</stc:TimeFrame>
  <stc:SpaceFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</stc:SpaceFrame>
  <stc:SpectralFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</stc:SpectralFrame>
  <stc:RedshiftFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="" value_type="VELOCITY">{0,1}</stc:RedshiftFrame>
  <psr:particleFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</psr:particleFrame>
  <psr:otherFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</psr:otherFrame>
</psr:coordSystem>
Attributes
QName Type Fixed Default Use Annotation
IDREF_type xs:string optional
ID_type xs:string optional
id xs:ID optional
idref xs:IDREF optional
ucd xs:string optional
xlink:href xs:anyURI optional
xlink:type restriction of xs:NMTOKEN simple optional
Source

<xs:element name="coordSystem" type="psr:CoordSysType" minOccurs="0"/>
Element psr:ResolutionRefValType / psr:units
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Annotations

This "Units" element is defined from VOUnits documentation. It
differs from the "unit" element of characterizationAxisType.
Diagram
Diagram ExtendedUnits_xsd.tmp#ExtendedUnit_expression ExtendedUnits_xsd.tmp#ExtendedUnit_dimEquation ExtendedUnits_xsd.tmp#ExtendedUnit_scaleSI ExtendedUnits_xsd.tmp#ExtendedUnit
Type psr:ExtendedUnit
Properties
content: complex
minOccurs: 0
Model psr:expression , psr:dimEquation , psr:scaleSI
Children psr:dimEquation, psr:expression, psr:scaleSI
Instance

<psr:units xmlns:psr="http://voparis-europlanet.obspm.fr/xml/PSR/v1.0">
  <psr:expression>{1,1}</psr:expression>
  <psr:dimEquation>{1,1}</psr:dimEquation>
  <psr:scaleSI>{1,1}</psr:scaleSI>
</psr:units>
Source

<xs:element name="units" type="psr:ExtendedUnit" minOccurs="0">
  <xs:annotation>
    <xs:documentation>This "Units" element is defined from VOUnits documentation. It differs from the "unit" element of characterizationAxisType.</xs:documentation>
  </xs:annotation>
</xs:element>
Element psr:ResolutionRefValType / psr:ResPow
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram stc-v1_30_xsd.tmp#STCReference stc-v1_30_xsd.tmp#double1Type_time_unit stc-v1_30_xsd.tmp#double1Type_pos_unit stc-v1_30_xsd.tmp#double1Type_pos_angle_unit stc-v1_30_xsd.tmp#double1Type_vel_time_unit stc-v1_30_xsd.tmp#double1Type_spectral_unit stc-v1_30_xsd.tmp#double1Type_gen_unit stc-v1_30_xsd.tmp#double1Type
Type double1Type
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
IDREF_type xs:string optional
ID_type xs:string optional
gen_unit unitType optional
id xs:ID optional
idref xs:IDREF optional
pos_angle_unit angleUnitType optional
pos_unit posUnitType optional
spectral_unit spectralUnitType optional
time_unit timeUnitType optional
ucd xs:string optional
vel_time_unit velTimeUnitType optional
xlink:href xs:anyURI optional
xlink:type restriction of xs:NMTOKEN simple optional
Source

<xs:element name="ResPow" type="stc:double1Type" minOccurs="0"/>

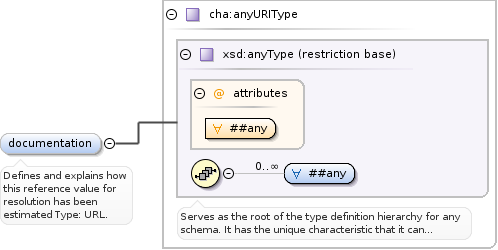

Element psr:ResolutionRefValType / psr:documentation
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Annotations

Defines and explains how this reference value for resolution
has been estimated Type: URL.
Diagram
Diagram Characterisation-v1_11_xsd.tmp#anyURIType
Type cha:anyURIType
Properties
content: complex
minOccurs: 0
Source

<xs:element name="documentation" type="cha:anyURIType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Defines and explains how this reference value for resolution has been estimated Type: URL.</xs:documentation>
  </xs:annotation>
</xs:element>

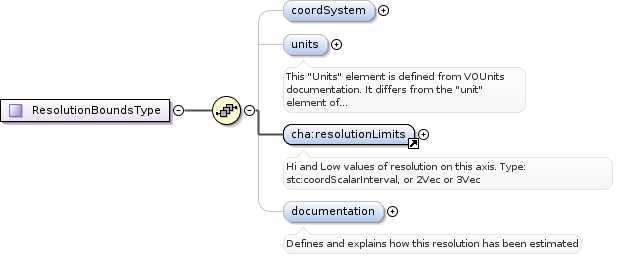

Element psr:ResolutionType / psr:resolutionBounds
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram CoordSys_xsd.tmp#ResolutionBoundsType_coordSystem CoordSys_xsd.tmp#ResolutionBoundsType_units Characterisation-v1_11_xsd.tmp#resolutionLimits CoordSys_xsd.tmp#ResolutionBoundsType_documentation CoordSys_xsd.tmp#ResolutionBoundsType
Type psr:ResolutionBoundsType
Properties
content: complex
minOccurs: 0
Model psr:coordSystem{0,1} , psr:units{0,1} , cha:resolutionLimits , psr:documentation{0,1}
Children cha:resolutionLimits, psr:coordSystem, psr:documentation, psr:units
Instance

<psr:resolutionBounds xmlns:psr="http://voparis-europlanet.obspm.fr/xml/PSR/v1.0" xmlns:cha="http://www.ivoa.net/xml/Characterisation/Characterisation-v1.11.xsd">
  <psr:coordSystem xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</psr:coordSystem>
  <psr:units>{0,1}</psr:units>
  <cha:resolutionLimits>{1,1}</cha:resolutionLimits>
  <psr:documentation>{0,1}</psr:documentation>
</psr:resolutionBounds>
Source

<xs:element name="resolutionBounds" type="psr:ResolutionBoundsType" minOccurs="0"/>
Element psr:ResolutionBoundsType / psr:coordSystem
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram stc-v1_30_xsd.tmp#STCReference stc-v1_30_xsd.tmp#stcBaseType stc-v1_30_xsd.tmp#CoordFrame stc-v1_30_xsd.tmp#coordSysType stc-v1_30_xsd.tmp#TimeFrame stc-v1_30_xsd.tmp#SpaceFrame stc-v1_30_xsd.tmp#SpectralFrame stc-v1_30_xsd.tmp#RedshiftFrame CoordSys_xsd.tmp#CoordSysType_particleFrame CoordSys_xsd.tmp#CoordSysType_otherFrame CoordSys_xsd.tmp#CoordSysType
Type psr:CoordSysType
Type hierarchy
Properties
content: complex
minOccurs: 0
Model CoordFrame* , (TimeFrame{0,1} | SpaceFrame{0,1} | SpectralFrame{0,1} | RedshiftFrame{0,1} | psr:particleFrame{0,1} | psr:otherFrame{0,1})
Children CoordFrame, RedshiftFrame, SpaceFrame, SpectralFrame, TimeFrame, psr:otherFrame, psr:particleFrame
Instance

<psr:coordSystem xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="" xmlns:psr="http://voparis-europlanet.obspm.fr/xml/PSR/v1.0" xmlns:stc="http://www.ivoa.net/xml/STC/stc-v1.30.xsd">
  <stc:CoordFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,unbounded}</stc:CoordFrame>
  <stc:TimeFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</stc:TimeFrame>
  <stc:SpaceFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</stc:SpaceFrame>
  <stc:SpectralFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</stc:SpectralFrame>
  <stc:RedshiftFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="" value_type="VELOCITY">{0,1}</stc:RedshiftFrame>
  <psr:particleFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</psr:particleFrame>
  <psr:otherFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</psr:otherFrame>
</psr:coordSystem>
Attributes
QName Type Fixed Default Use Annotation
IDREF_type xs:string optional
ID_type xs:string optional
id xs:ID optional
idref xs:IDREF optional
ucd xs:string optional
xlink:href xs:anyURI optional
xlink:type restriction of xs:NMTOKEN simple optional
Source

<xs:element name="coordSystem" type="psr:CoordSysType" minOccurs="0"/>
Element psr:ResolutionBoundsType / psr:units
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Annotations

This "Units" element is defined from VOUnits documentation. It
differs from the "unit" element of characterizationAxisType.
Diagram
Diagram ExtendedUnits_xsd.tmp#ExtendedUnit_expression ExtendedUnits_xsd.tmp#ExtendedUnit_dimEquation ExtendedUnits_xsd.tmp#ExtendedUnit_scaleSI ExtendedUnits_xsd.tmp#ExtendedUnit
Type psr:ExtendedUnit
Properties
content: complex
minOccurs: 0
Model psr:expression , psr:dimEquation , psr:scaleSI
Children psr:dimEquation, psr:expression, psr:scaleSI
Instance

<psr:units xmlns:psr="http://voparis-europlanet.obspm.fr/xml/PSR/v1.0">
  <psr:expression>{1,1}</psr:expression>
  <psr:dimEquation>{1,1}</psr:dimEquation>
  <psr:scaleSI>{1,1}</psr:scaleSI>
</psr:units>
Source

<xs:element name="units" type="psr:ExtendedUnit" minOccurs="0">
  <xs:annotation>
    <xs:documentation>This "Units" element is defined from VOUnits documentation. It differs from the "unit" element of characterizationAxisType.</xs:documentation>
  </xs:annotation>
</xs:element>

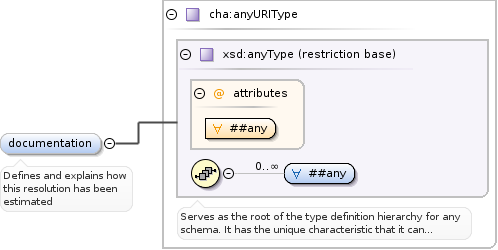

Element psr:ResolutionBoundsType / psr:documentation
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Annotations

Defines and explains how this resolution has been estimated
Diagram
Diagram Characterisation-v1_11_xsd.tmp#anyURIType
Type cha:anyURIType
Properties
content: complex
minOccurs: 0
Source

<xs:element name="documentation" type="cha:anyURIType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Defines and explains how this resolution has been estimated</xs:documentation>
  </xs:annotation>
</xs:element>

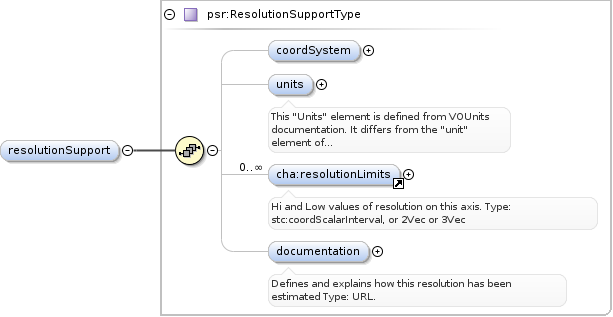

Element psr:ResolutionType / psr:resolutionSupport
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram CoordSys_xsd.tmp#ResolutionSupportType_coordSystem CoordSys_xsd.tmp#ResolutionSupportType_units Characterisation-v1_11_xsd.tmp#resolutionLimits CoordSys_xsd.tmp#ResolutionSupportType_documentation CoordSys_xsd.tmp#ResolutionSupportType
Type psr:ResolutionSupportType
Properties
content: complex
minOccurs: 0
Model psr:coordSystem{0,1} , psr:units{0,1} , cha:resolutionLimits* , psr:documentation{0,1}
Children cha:resolutionLimits, psr:coordSystem, psr:documentation, psr:units
Instance

<psr:resolutionSupport xmlns:psr="http://voparis-europlanet.obspm.fr/xml/PSR/v1.0" xmlns:cha="http://www.ivoa.net/xml/Characterisation/Characterisation-v1.11.xsd">
  <psr:coordSystem xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</psr:coordSystem>
  <psr:units>{0,1}</psr:units>
  <cha:resolutionLimits>{0,unbounded}</cha:resolutionLimits>
  <psr:documentation>{0,1}</psr:documentation>
</psr:resolutionSupport>
Source

<xs:element name="resolutionSupport" type="psr:ResolutionSupportType" minOccurs="0"/>
Element psr:ResolutionSupportType / psr:coordSystem
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram stc-v1_30_xsd.tmp#STCReference stc-v1_30_xsd.tmp#stcBaseType stc-v1_30_xsd.tmp#CoordFrame stc-v1_30_xsd.tmp#coordSysType stc-v1_30_xsd.tmp#TimeFrame stc-v1_30_xsd.tmp#SpaceFrame stc-v1_30_xsd.tmp#SpectralFrame stc-v1_30_xsd.tmp#RedshiftFrame CoordSys_xsd.tmp#CoordSysType_particleFrame CoordSys_xsd.tmp#CoordSysType_otherFrame CoordSys_xsd.tmp#CoordSysType
Type psr:CoordSysType
Type hierarchy
Properties
content: complex
minOccurs: 0
Model CoordFrame* , (TimeFrame{0,1} | SpaceFrame{0,1} | SpectralFrame{0,1} | RedshiftFrame{0,1} | psr:particleFrame{0,1} | psr:otherFrame{0,1})
Children CoordFrame, RedshiftFrame, SpaceFrame, SpectralFrame, TimeFrame, psr:otherFrame, psr:particleFrame
Instance

<psr:coordSystem xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="" xmlns:psr="http://voparis-europlanet.obspm.fr/xml/PSR/v1.0" xmlns:stc="http://www.ivoa.net/xml/STC/stc-v1.30.xsd">
  <stc:CoordFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,unbounded}</stc:CoordFrame>
  <stc:TimeFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</stc:TimeFrame>
  <stc:SpaceFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</stc:SpaceFrame>
  <stc:SpectralFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</stc:SpectralFrame>
  <stc:RedshiftFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="" value_type="VELOCITY">{0,1}</stc:RedshiftFrame>
  <psr:particleFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</psr:particleFrame>
  <psr:otherFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</psr:otherFrame>
</psr:coordSystem>
Attributes
QName Type Fixed Default Use Annotation
IDREF_type xs:string optional
ID_type xs:string optional
id xs:ID optional
idref xs:IDREF optional
ucd xs:string optional
xlink:href xs:anyURI optional
xlink:type restriction of xs:NMTOKEN simple optional
Source

<xs:element name="coordSystem" type="psr:CoordSysType" minOccurs="0"/>
Element psr:ResolutionSupportType / psr:units
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Annotations

This "Units" element is defined from VOUnits documentation. It
differs from the "unit" element of characterizationAxisType.
Diagram
Diagram ExtendedUnits_xsd.tmp#ExtendedUnit_expression ExtendedUnits_xsd.tmp#ExtendedUnit_dimEquation ExtendedUnits_xsd.tmp#ExtendedUnit_scaleSI ExtendedUnits_xsd.tmp#ExtendedUnit
Type psr:ExtendedUnit
Properties
content: complex
minOccurs: 0
Model psr:expression , psr:dimEquation , psr:scaleSI
Children psr:dimEquation, psr:expression, psr:scaleSI
Instance

<psr:units xmlns:psr="http://voparis-europlanet.obspm.fr/xml/PSR/v1.0">
  <psr:expression>{1,1}</psr:expression>
  <psr:dimEquation>{1,1}</psr:dimEquation>
  <psr:scaleSI>{1,1}</psr:scaleSI>
</psr:units>
Source

<xs:element name="units" type="psr:ExtendedUnit" minOccurs="0">
  <xs:annotation>
    <xs:documentation>This "Units" element is defined from VOUnits documentation. It differs from the "unit" element of characterizationAxisType.</xs:documentation>
  </xs:annotation>
</xs:element>
Element psr:ResolutionSupportType / psr:documentation
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Annotations

Defines and explains how this resolution has been estimated
Type: URL.
Diagram
Diagram Characterisation-v1_11_xsd.tmp#anyURIType
Type cha:anyURIType
Properties
content: complex
minOccurs: 0
Source

<xs:element name="documentation" type="cha:anyURIType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Defines and explains how this resolution has been estimated Type: URL.</xs:documentation>
  </xs:annotation>
</xs:element>
Element psr:ResolutionType / psr:resolutionVariability
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram CoordSys_xsd.tmp#ResolutionVariabilityType_coordSystem CoordSys_xsd.tmp#ResolutionVariabilityType_units CoordSys_xsd.tmp#ResolutionVariabilityType_resolutionMap CoordSys_xsd.tmp#ResolutionVariabilityType_documentation CoordSys_xsd.tmp#ResolutionVariabilityType
Type psr:ResolutionVariabilityType
Properties
content: complex
minOccurs: 0
Model psr:coordSystem{0,1} , psr:units{0,1} , psr:resolutionMap , psr:documentation{0,1}
Children psr:coordSystem, psr:documentation, psr:resolutionMap, psr:units
Instance

<psr:resolutionVariability xmlns:psr="http://voparis-europlanet.obspm.fr/xml/PSR/v1.0">
  <psr:coordSystem xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</psr:coordSystem>
  <psr:units>{0,1}</psr:units>
  <psr:resolutionMap>{1,1}</psr:resolutionMap>
  <psr:documentation>{0,1}</psr:documentation>
</psr:resolutionVariability>
Source

<xs:element name="resolutionVariability" type="psr:ResolutionVariabilityType" minOccurs="0"/>
Element psr:ResolutionVariabilityType / psr:coordSystem
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram stc-v1_30_xsd.tmp#STCReference stc-v1_30_xsd.tmp#stcBaseType stc-v1_30_xsd.tmp#CoordFrame stc-v1_30_xsd.tmp#coordSysType stc-v1_30_xsd.tmp#TimeFrame stc-v1_30_xsd.tmp#SpaceFrame stc-v1_30_xsd.tmp#SpectralFrame stc-v1_30_xsd.tmp#RedshiftFrame CoordSys_xsd.tmp#CoordSysType_particleFrame CoordSys_xsd.tmp#CoordSysType_otherFrame CoordSys_xsd.tmp#CoordSysType
Type psr:CoordSysType
Type hierarchy
Properties
content: complex
minOccurs: 0
Model CoordFrame* , (TimeFrame{0,1} | SpaceFrame{0,1} | SpectralFrame{0,1} | RedshiftFrame{0,1} | psr:particleFrame{0,1} | psr:otherFrame{0,1})
Children CoordFrame, RedshiftFrame, SpaceFrame, SpectralFrame, TimeFrame, psr:otherFrame, psr:particleFrame
Instance

<psr:coordSystem xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="" xmlns:psr="http://voparis-europlanet.obspm.fr/xml/PSR/v1.0" xmlns:stc="http://www.ivoa.net/xml/STC/stc-v1.30.xsd">
  <stc:CoordFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,unbounded}</stc:CoordFrame>
  <stc:TimeFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</stc:TimeFrame>
  <stc:SpaceFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</stc:SpaceFrame>
  <stc:SpectralFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</stc:SpectralFrame>
  <stc:RedshiftFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="" value_type="VELOCITY">{0,1}</stc:RedshiftFrame>
  <psr:particleFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</psr:particleFrame>
  <psr:otherFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</psr:otherFrame>
</psr:coordSystem>
Attributes
QName Type Fixed Default Use Annotation
IDREF_type xs:string optional
ID_type xs:string optional
id xs:ID optional
idref xs:IDREF optional
ucd xs:string optional
xlink:href xs:anyURI optional
xlink:type restriction of xs:NMTOKEN simple optional
Source

<xs:element name="coordSystem" type="psr:CoordSysType" minOccurs="0"/>
Element psr:ResolutionVariabilityType / psr:units
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Annotations

This "Units" element is defined from VOUnits documentation. It
differs from the "unit" element of characterizationAxisType.
Diagram
Diagram ExtendedUnits_xsd.tmp#ExtendedUnit_expression ExtendedUnits_xsd.tmp#ExtendedUnit_dimEquation ExtendedUnits_xsd.tmp#ExtendedUnit_scaleSI ExtendedUnits_xsd.tmp#ExtendedUnit
Type psr:ExtendedUnit
Properties
content: complex
minOccurs: 0
Model psr:expression , psr:dimEquation , psr:scaleSI
Children psr:dimEquation, psr:expression, psr:scaleSI
Instance

<psr:units xmlns:psr="http://voparis-europlanet.obspm.fr/xml/PSR/v1.0">
  <psr:expression>{1,1}</psr:expression>
  <psr:dimEquation>{1,1}</psr:dimEquation>
  <psr:scaleSI>{1,1}</psr:scaleSI>
</psr:units>
Source

<xs:element name="units" type="psr:ExtendedUnit" minOccurs="0">
  <xs:annotation>
    <xs:documentation>This "Units" element is defined from VOUnits documentation. It differs from the "unit" element of characterizationAxisType.</xs:documentation>
  </xs:annotation>
</xs:element>
Element psr:ResolutionVariabilityType / psr:resolutionMap
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram Characterisation-v1_11_xsd.tmp#anyURIType
Type cha:anyURIType
Properties
content: complex
Source

<xs:element name="resolutionMap" type="cha:anyURIType"/>
Element psr:ResolutionVariabilityType / psr:documentation
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Annotations

Defines and explains how this resolution has been estimated
Type: URL.
Diagram
Diagram Characterisation-v1_11_xsd.tmp#anyURIType
Type cha:anyURIType
Properties
content: complex
minOccurs: 0
Source

<xs:element name="documentation" type="cha:anyURIType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Defines and explains how this resolution has been estimated Type: URL.</xs:documentation>
  </xs:annotation>
</xs:element>
Element psr:SamplingPrecisionType / psr:coordSystem
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram stc-v1_30_xsd.tmp#STCReference stc-v1_30_xsd.tmp#stcBaseType stc-v1_30_xsd.tmp#CoordFrame stc-v1_30_xsd.tmp#coordSysType stc-v1_30_xsd.tmp#TimeFrame stc-v1_30_xsd.tmp#SpaceFrame stc-v1_30_xsd.tmp#SpectralFrame stc-v1_30_xsd.tmp#RedshiftFrame CoordSys_xsd.tmp#CoordSysType_particleFrame CoordSys_xsd.tmp#CoordSysType_otherFrame CoordSys_xsd.tmp#CoordSysType
Type psr:CoordSysType
Type hierarchy
Properties
content: complex
minOccurs: 0
Model CoordFrame* , (TimeFrame{0,1} | SpaceFrame{0,1} | SpectralFrame{0,1} | RedshiftFrame{0,1} | psr:particleFrame{0,1} | psr:otherFrame{0,1})
Children CoordFrame, RedshiftFrame, SpaceFrame, SpectralFrame, TimeFrame, psr:otherFrame, psr:particleFrame
Instance

<psr:coordSystem xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="" xmlns:psr="http://voparis-europlanet.obspm.fr/xml/PSR/v1.0" xmlns:stc="http://www.ivoa.net/xml/STC/stc-v1.30.xsd">
  <stc:CoordFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,unbounded}</stc:CoordFrame>
  <stc:TimeFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</stc:TimeFrame>
  <stc:SpaceFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</stc:SpaceFrame>
  <stc:SpectralFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</stc:SpectralFrame>
  <stc:RedshiftFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="" value_type="VELOCITY">{0,1}</stc:RedshiftFrame>
  <psr:particleFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</psr:particleFrame>
  <psr:otherFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</psr:otherFrame>
</psr:coordSystem>
Attributes
QName Type Fixed Default Use Annotation
IDREF_type xs:string optional
ID_type xs:string optional
id xs:ID optional
idref xs:IDREF optional
ucd xs:string optional
xlink:href xs:anyURI optional
xlink:type restriction of xs:NMTOKEN simple optional
Source

<xs:element name="coordSystem" type="psr:CoordSysType" minOccurs="0"/>
Element psr:SamplingPrecisionType / psr:units
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram ExtendedUnits_xsd.tmp#ExtendedUnit_expression ExtendedUnits_xsd.tmp#ExtendedUnit_dimEquation ExtendedUnits_xsd.tmp#ExtendedUnit_scaleSI ExtendedUnits_xsd.tmp#ExtendedUnit
Type psr:ExtendedUnit
Properties
content: complex
minOccurs: 0
Model psr:expression , psr:dimEquation , psr:scaleSI
Children psr:dimEquation, psr:expression, psr:scaleSI
Instance

<psr:units xmlns:psr="http://voparis-europlanet.obspm.fr/xml/PSR/v1.0">
  <psr:expression>{1,1}</psr:expression>
  <psr:dimEquation>{1,1}</psr:dimEquation>
  <psr:scaleSI>{1,1}</psr:scaleSI>
</psr:units>
Source

<xs:element name="units" type="psr:ExtendedUnit" minOccurs="0"/>
Element psr:SamplingPrecisionType / psr:samplingPrecisionRefVal
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram CoordSys_xsd.tmp#SamplingPrecisionRefValType_extendCoordSystem CoordSys_xsd.tmp#SamplingPrecisionRefValType_units Characterisation-v1_11_xsd.tmp#samplingPeriod Characterisation-v1_11_xsd.tmp#sampleExtent CoordSys_xsd.tmp#SamplingPrecisionRefValType_fillFactor CoordSys_xsd.tmp#SamplingPrecisionRefValType_documentation CoordSys_xsd.tmp#SamplingPrecisionRefValType
Type psr:SamplingPrecisionRefValType
Properties
content: complex
Model psr:extendCoordSystem{0,1} , psr:units{0,1} , ((cha:samplingPeriod , cha:sampleExtent{0,1}) | psr:fillFactor{0,1}) , psr:documentation{0,1}
Children cha:sampleExtent, cha:samplingPeriod, psr:documentation, psr:extendCoordSystem, psr:fillFactor, psr:units
Instance

<psr:samplingPrecisionRefVal xmlns:psr="http://voparis-europlanet.obspm.fr/xml/PSR/v1.0" xmlns:cha="http://www.ivoa.net/xml/Characterisation/Characterisation-v1.11.xsd">
  <psr:extendCoordSystem xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</psr:extendCoordSystem>
  <psr:units>{0,1}</psr:units>
  <cha:samplingPeriod>{1,1}</cha:samplingPeriod>
  <cha:sampleExtent>{0,1}</cha:sampleExtent>
  <psr:fillFactor>{0,1}</psr:fillFactor>
  <psr:documentation>{0,1}</psr:documentation>
</psr:samplingPrecisionRefVal>
Source

<xs:element name="samplingPrecisionRefVal" type="psr:SamplingPrecisionRefValType"/>
Element psr:SamplingPrecisionRefValType / psr:extendCoordSystem
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram stc-v1_30_xsd.tmp#STCReference stc-v1_30_xsd.tmp#stcBaseType stc-v1_30_xsd.tmp#CoordFrame stc-v1_30_xsd.tmp#coordSysType stc-v1_30_xsd.tmp#TimeFrame stc-v1_30_xsd.tmp#SpaceFrame stc-v1_30_xsd.tmp#SpectralFrame stc-v1_30_xsd.tmp#RedshiftFrame CoordSys_xsd.tmp#CoordSysType_particleFrame CoordSys_xsd.tmp#CoordSysType_otherFrame CoordSys_xsd.tmp#CoordSysType
Type psr:CoordSysType
Type hierarchy
Properties
content: complex
minOccurs: 0
Model CoordFrame* , (TimeFrame{0,1} | SpaceFrame{0,1} | SpectralFrame{0,1} | RedshiftFrame{0,1} | psr:particleFrame{0,1} | psr:otherFrame{0,1})
Children CoordFrame, RedshiftFrame, SpaceFrame, SpectralFrame, TimeFrame, psr:otherFrame, psr:particleFrame
Instance

<psr:extendCoordSystem xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="" xmlns:psr="http://voparis-europlanet.obspm.fr/xml/PSR/v1.0" xmlns:stc="http://www.ivoa.net/xml/STC/stc-v1.30.xsd">
  <stc:CoordFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,unbounded}</stc:CoordFrame>
  <stc:TimeFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</stc:TimeFrame>
  <stc:SpaceFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</stc:SpaceFrame>
  <stc:SpectralFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</stc:SpectralFrame>
  <stc:RedshiftFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="" value_type="VELOCITY">{0,1}</stc:RedshiftFrame>
  <psr:particleFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</psr:particleFrame>
  <psr:otherFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</psr:otherFrame>
</psr:extendCoordSystem>
Attributes
QName Type Fixed Default Use Annotation
IDREF_type xs:string optional
ID_type xs:string optional
id xs:ID optional
idref xs:IDREF optional
ucd xs:string optional
xlink:href xs:anyURI optional
xlink:type restriction of xs:NMTOKEN simple optional
Source

<xs:element name="extendCoordSystem" type="psr:CoordSysType" minOccurs="0"/>
Element psr:SamplingPrecisionRefValType / psr:units
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram ExtendedUnits_xsd.tmp#ExtendedUnit_expression ExtendedUnits_xsd.tmp#ExtendedUnit_dimEquation ExtendedUnits_xsd.tmp#ExtendedUnit_scaleSI ExtendedUnits_xsd.tmp#ExtendedUnit
Type psr:ExtendedUnit
Properties
content: complex
minOccurs: 0
Model psr:expression , psr:dimEquation , psr:scaleSI
Children psr:dimEquation, psr:expression, psr:scaleSI
Instance

<psr:units xmlns:psr="http://voparis-europlanet.obspm.fr/xml/PSR/v1.0">
  <psr:expression>{1,1}</psr:expression>
  <psr:dimEquation>{1,1}</psr:dimEquation>
  <psr:scaleSI>{1,1}</psr:scaleSI>
</psr:units>
Source

<xs:element name="units" type="psr:ExtendedUnit" minOccurs="0"/>
Element psr:SamplingPrecisionRefValType / psr:fillFactor
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram
Type xs:double
Properties
content: simple
minOccurs: 0
Source

<xs:element name="fillFactor" type="xs:double" minOccurs="0"/>
Element psr:SamplingPrecisionRefValType / psr:documentation
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Annotations

Explains how the fill factor is estimated . Type: URI
Diagram
Diagram Characterisation-v1_11_xsd.tmp#anyURIType
Type cha:anyURIType
Properties
content: complex
minOccurs: 0
Source

<xs:element name="documentation" type="cha:anyURIType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Explains how the fill factor is estimated . Type: URI</xs:documentation>
  </xs:annotation>
</xs:element>
Element psr:SamplingPrecisionType / psr:samplingPrecisionBounds
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram CoordSys_xsd.tmp#SamplingPrecisionBoundsType_extendCoordSystem CoordSys_xsd.tmp#SamplingPrecisionBoundsType_units Characterisation-v1_11_xsd.tmp#samplingPeriodLimits Characterisation-v1_11_xsd.tmp#samplingExtentLimits CoordSys_xsd.tmp#SamplingPrecisionBoundsType_documentation CoordSys_xsd.tmp#SamplingPrecisionBoundsType
Type psr:SamplingPrecisionBoundsType
Properties
content: complex
minOccurs: 1
Model psr:extendCoordSystem{0,1} , psr:units{0,1} , cha:samplingPeriodLimits , cha:samplingExtentLimits{0,1} , psr:documentation{0,1}
Children cha:samplingExtentLimits, cha:samplingPeriodLimits, psr:documentation, psr:extendCoordSystem, psr:units
Instance

<psr:samplingPrecisionBounds xmlns:psr="http://voparis-europlanet.obspm.fr/xml/PSR/v1.0" xmlns:cha="http://www.ivoa.net/xml/Characterisation/Characterisation-v1.11.xsd">
  <psr:extendCoordSystem xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</psr:extendCoordSystem>
  <psr:units>{0,1}</psr:units>
  <cha:samplingPeriodLimits>{1,1}</cha:samplingPeriodLimits>
  <cha:samplingExtentLimits>{0,1}</cha:samplingExtentLimits>
  <psr:documentation>{0,1}</psr:documentation>
</psr:samplingPrecisionBounds>
Source

<xs:element name="samplingPrecisionBounds" type="psr:SamplingPrecisionBoundsType" minOccurs="1"/>
Element psr:SamplingPrecisionBoundsType / psr:extendCoordSystem
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram stc-v1_30_xsd.tmp#STCReference stc-v1_30_xsd.tmp#stcBaseType stc-v1_30_xsd.tmp#CoordFrame stc-v1_30_xsd.tmp#coordSysType stc-v1_30_xsd.tmp#TimeFrame stc-v1_30_xsd.tmp#SpaceFrame stc-v1_30_xsd.tmp#SpectralFrame stc-v1_30_xsd.tmp#RedshiftFrame CoordSys_xsd.tmp#CoordSysType_particleFrame CoordSys_xsd.tmp#CoordSysType_otherFrame CoordSys_xsd.tmp#CoordSysType
Type psr:CoordSysType
Type hierarchy
Properties
content: complex
minOccurs: 0
Model CoordFrame* , (TimeFrame{0,1} | SpaceFrame{0,1} | SpectralFrame{0,1} | RedshiftFrame{0,1} | psr:particleFrame{0,1} | psr:otherFrame{0,1})
Children CoordFrame, RedshiftFrame, SpaceFrame, SpectralFrame, TimeFrame, psr:otherFrame, psr:particleFrame
Instance

<psr:extendCoordSystem xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="" xmlns:psr="http://voparis-europlanet.obspm.fr/xml/PSR/v1.0" xmlns:stc="http://www.ivoa.net/xml/STC/stc-v1.30.xsd">
  <stc:CoordFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,unbounded}</stc:CoordFrame>
  <stc:TimeFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</stc:TimeFrame>
  <stc:SpaceFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</stc:SpaceFrame>
  <stc:SpectralFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</stc:SpectralFrame>
  <stc:RedshiftFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="" value_type="VELOCITY">{0,1}</stc:RedshiftFrame>
  <psr:particleFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</psr:particleFrame>
  <psr:otherFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</psr:otherFrame>
</psr:extendCoordSystem>
Attributes
QName Type Fixed Default Use Annotation
IDREF_type xs:string optional
ID_type xs:string optional
id xs:ID optional
idref xs:IDREF optional
ucd xs:string optional
xlink:href xs:anyURI optional
xlink:type restriction of xs:NMTOKEN simple optional
Source

<xs:element name="extendCoordSystem" type="psr:CoordSysType" minOccurs="0"/>
Element psr:SamplingPrecisionBoundsType / psr:units
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram ExtendedUnits_xsd.tmp#ExtendedUnit_expression ExtendedUnits_xsd.tmp#ExtendedUnit_dimEquation ExtendedUnits_xsd.tmp#ExtendedUnit_scaleSI ExtendedUnits_xsd.tmp#ExtendedUnit
Type psr:ExtendedUnit
Properties
content: complex
minOccurs: 0
Model psr:expression , psr:dimEquation , psr:scaleSI
Children psr:dimEquation, psr:expression, psr:scaleSI
Instance

<psr:units xmlns:psr="http://voparis-europlanet.obspm.fr/xml/PSR/v1.0">
  <psr:expression>{1,1}</psr:expression>
  <psr:dimEquation>{1,1}</psr:dimEquation>
  <psr:scaleSI>{1,1}</psr:scaleSI>
</psr:units>
Source

<xs:element name="units" type="psr:ExtendedUnit" minOccurs="0"/>
Element psr:SamplingPrecisionBoundsType / psr:documentation
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram Characterisation-v1_11_xsd.tmp#anyURIType
Type cha:anyURIType
Properties
content: complex
minOccurs: 0
Source

<xs:element name="documentation" type="cha:anyURIType" minOccurs="0"/>
Element psr:SamplingPrecisionType / psr:samplingPrecisionSupport
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram CoordSys_xsd.tmp#SamplingPrecisionSupportType_extendCoordSystem CoordSys_xsd.tmp#SamplingPrecisionSupportType_units Characterisation-v1_11_xsd.tmp#samplingPeriodLimits Characterisation-v1_11_xsd.tmp#samplingExtentLimits CoordSys_xsd.tmp#SamplingPrecisionSupportType_documentation CoordSys_xsd.tmp#SamplingPrecisionSupportType
Type psr:SamplingPrecisionSupportType
Properties
content: complex
minOccurs: 0
Model psr:extendCoordSystem{0,1} , psr:units{0,1} , cha:samplingPeriodLimits* , cha:samplingExtentLimits* , psr:documentation{0,1}
Children cha:samplingExtentLimits, cha:samplingPeriodLimits, psr:documentation, psr:extendCoordSystem, psr:units
Instance

<psr:samplingPrecisionSupport xmlns:psr="http://voparis-europlanet.obspm.fr/xml/PSR/v1.0" xmlns:cha="http://www.ivoa.net/xml/Characterisation/Characterisation-v1.11.xsd">
  <psr:extendCoordSystem xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</psr:extendCoordSystem>
  <psr:units>{0,1}</psr:units>
  <cha:samplingPeriodLimits>{0,unbounded}</cha:samplingPeriodLimits>
  <cha:samplingExtentLimits>{0,unbounded}</cha:samplingExtentLimits>
  <psr:documentation>{0,1}</psr:documentation>
</psr:samplingPrecisionSupport>
Source

<xs:element name="samplingPrecisionSupport" type="psr:SamplingPrecisionSupportType" minOccurs="0"/>
Element psr:SamplingPrecisionSupportType / psr:extendCoordSystem
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram stc-v1_30_xsd.tmp#STCReference stc-v1_30_xsd.tmp#stcBaseType stc-v1_30_xsd.tmp#CoordFrame stc-v1_30_xsd.tmp#coordSysType stc-v1_30_xsd.tmp#TimeFrame stc-v1_30_xsd.tmp#SpaceFrame stc-v1_30_xsd.tmp#SpectralFrame stc-v1_30_xsd.tmp#RedshiftFrame CoordSys_xsd.tmp#CoordSysType_particleFrame CoordSys_xsd.tmp#CoordSysType_otherFrame CoordSys_xsd.tmp#CoordSysType
Type psr:CoordSysType
Type hierarchy
Properties
content: complex
minOccurs: 0
Model CoordFrame* , (TimeFrame{0,1} | SpaceFrame{0,1} | SpectralFrame{0,1} | RedshiftFrame{0,1} | psr:particleFrame{0,1} | psr:otherFrame{0,1})
Children CoordFrame, RedshiftFrame, SpaceFrame, SpectralFrame, TimeFrame, psr:otherFrame, psr:particleFrame
Instance

<psr:extendCoordSystem xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="" xmlns:psr="http://voparis-europlanet.obspm.fr/xml/PSR/v1.0" xmlns:stc="http://www.ivoa.net/xml/STC/stc-v1.30.xsd">
  <stc:CoordFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,unbounded}</stc:CoordFrame>
  <stc:TimeFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</stc:TimeFrame>
  <stc:SpaceFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</stc:SpaceFrame>
  <stc:SpectralFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</stc:SpectralFrame>
  <stc:RedshiftFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="" value_type="VELOCITY">{0,1}</stc:RedshiftFrame>
  <psr:particleFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</psr:particleFrame>
  <psr:otherFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</psr:otherFrame>
</psr:extendCoordSystem>
Attributes
QName Type Fixed Default Use Annotation
IDREF_type xs:string optional
ID_type xs:string optional
id xs:ID optional
idref xs:IDREF optional
ucd xs:string optional
xlink:href xs:anyURI optional
xlink:type restriction of xs:NMTOKEN simple optional
Source

<xs:element name="extendCoordSystem" type="psr:CoordSysType" minOccurs="0"/>
Element psr:SamplingPrecisionSupportType / psr:units
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram ExtendedUnits_xsd.tmp#ExtendedUnit_expression ExtendedUnits_xsd.tmp#ExtendedUnit_dimEquation ExtendedUnits_xsd.tmp#ExtendedUnit_scaleSI ExtendedUnits_xsd.tmp#ExtendedUnit
Type psr:ExtendedUnit
Properties
content: complex
minOccurs: 0
Model psr:expression , psr:dimEquation , psr:scaleSI
Children psr:dimEquation, psr:expression, psr:scaleSI
Instance

<psr:units xmlns:psr="http://voparis-europlanet.obspm.fr/xml/PSR/v1.0">
  <psr:expression>{1,1}</psr:expression>
  <psr:dimEquation>{1,1}</psr:dimEquation>
  <psr:scaleSI>{1,1}</psr:scaleSI>
</psr:units>
Source

<xs:element name="units" type="psr:ExtendedUnit" minOccurs="0"/>
Element psr:SamplingPrecisionSupportType / psr:documentation
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Annotations

A place to hook some explanations about "how" the Sampling
was done and assessed. Type: URI
Diagram
Diagram Characterisation-v1_11_xsd.tmp#anyURIType
Type cha:anyURIType
Properties
content: complex
minOccurs: 0
Source

<xs:element name="documentation" type="cha:anyURIType" minOccurs="0">
  <xs:annotation>
    <xs:documentation>A place to hook some explanations about "how" the Sampling was done and assessed. Type: URI</xs:documentation>
  </xs:annotation>
</xs:element>
Element psr:SamplingPrecisionType / psr:samplingPrecisionVariability
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram CoordSys_xsd.tmp#SamplingPrecisionVariabilityType_extendCoordSystem CoordSys_xsd.tmp#SamplingPrecisionVariabilityType_units CoordSys_xsd.tmp#SamplingPrecisionVariabilityType_samplingPrecisionMap CoordSys_xsd.tmp#SamplingPrecisionVariabilityType_documentation CoordSys_xsd.tmp#SamplingPrecisionVariabilityType
Type psr:SamplingPrecisionVariabilityType
Properties
content: complex
minOccurs: 0
Model psr:extendCoordSystem{0,1} , psr:units{0,1} , psr:samplingPrecisionMap , psr:documentation{0,1}
Children psr:documentation, psr:extendCoordSystem, psr:samplingPrecisionMap, psr:units
Instance

<psr:samplingPrecisionVariability xmlns:psr="http://voparis-europlanet.obspm.fr/xml/PSR/v1.0">
  <psr:extendCoordSystem xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</psr:extendCoordSystem>
  <psr:units>{0,1}</psr:units>
  <psr:samplingPrecisionMap>{1,1}</psr:samplingPrecisionMap>
  <psr:documentation>{0,1}</psr:documentation>
</psr:samplingPrecisionVariability>
Source

<xs:element name="samplingPrecisionVariability" type="psr:SamplingPrecisionVariabilityType" minOccurs="0"/>
Element psr:SamplingPrecisionVariabilityType / psr:extendCoordSystem
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram stc-v1_30_xsd.tmp#STCReference stc-v1_30_xsd.tmp#stcBaseType stc-v1_30_xsd.tmp#CoordFrame stc-v1_30_xsd.tmp#coordSysType stc-v1_30_xsd.tmp#TimeFrame stc-v1_30_xsd.tmp#SpaceFrame stc-v1_30_xsd.tmp#SpectralFrame stc-v1_30_xsd.tmp#RedshiftFrame CoordSys_xsd.tmp#CoordSysType_particleFrame CoordSys_xsd.tmp#CoordSysType_otherFrame CoordSys_xsd.tmp#CoordSysType
Type psr:CoordSysType
Type hierarchy
Properties
content: complex
minOccurs: 0
Model CoordFrame* , (TimeFrame{0,1} | SpaceFrame{0,1} | SpectralFrame{0,1} | RedshiftFrame{0,1} | psr:particleFrame{0,1} | psr:otherFrame{0,1})
Children CoordFrame, RedshiftFrame, SpaceFrame, SpectralFrame, TimeFrame, psr:otherFrame, psr:particleFrame
Instance

<psr:extendCoordSystem xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="" xmlns:psr="http://voparis-europlanet.obspm.fr/xml/PSR/v1.0" xmlns:stc="http://www.ivoa.net/xml/STC/stc-v1.30.xsd">
  <stc:CoordFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,unbounded}</stc:CoordFrame>
  <stc:TimeFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</stc:TimeFrame>
  <stc:SpaceFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</stc:SpaceFrame>
  <stc:SpectralFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</stc:SpectralFrame>
  <stc:RedshiftFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="" value_type="VELOCITY">{0,1}</stc:RedshiftFrame>
  <psr:particleFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</psr:particleFrame>
  <psr:otherFrame xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="">{0,1}</psr:otherFrame>
</psr:extendCoordSystem>
Attributes
QName Type Fixed Default Use Annotation
IDREF_type xs:string optional
ID_type xs:string optional
id xs:ID optional
idref xs:IDREF optional
ucd xs:string optional
xlink:href xs:anyURI optional
xlink:type restriction of xs:NMTOKEN simple optional
Source

<xs:element name="extendCoordSystem" type="psr:CoordSysType" minOccurs="0"/>
Element psr:SamplingPrecisionVariabilityType / psr:units
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram ExtendedUnits_xsd.tmp#ExtendedUnit_expression ExtendedUnits_xsd.tmp#ExtendedUnit_dimEquation ExtendedUnits_xsd.tmp#ExtendedUnit_scaleSI ExtendedUnits_xsd.tmp#ExtendedUnit
Type psr:ExtendedUnit
Properties
content: complex
minOccurs: 0
Model psr:expression , psr:dimEquation , psr:scaleSI
Children psr:dimEquation, psr:expression, psr:scaleSI
Instance

<psr:units xmlns:psr="http://voparis-europlanet.obspm.fr/xml/PSR/v1.0">
  <psr:expression>{1,1}</psr:expression>
  <psr:dimEquation>{1,1}</psr:dimEquation>
  <psr:scaleSI>{1,1}</psr:scaleSI>
</psr:units>
Source

<xs:element name="units" type="psr:ExtendedUnit" minOccurs="0"/>
Element psr:SamplingPrecisionVariabilityType / psr:samplingPrecisionMap
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Annotations

This map describes the variability of the sampling along the
axis, or the varying shape of the sampling fonction, or both. Can be
attached to the data implemented as anyURI type
Diagram
Diagram Characterisation-v1_11_xsd.tmp#anyURIType
Type cha:anyURIType
Properties
content: complex
Source

<xs:element name="samplingPrecisionMap" type="cha:anyURIType">
  <xs:annotation>
    <xs:documentation>This map describes the variability of the sampling along the axis, or the varying shape of the sampling fonction, or both. Can be attached to the data implemented as anyURI type</xs:documentation>
  </xs:annotation>
</xs:element>
Element psr:SamplingPrecisionVariabilityType / psr:documentation
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram Characterisation-v1_11_xsd.tmp#anyURIType
Type cha:anyURIType
Properties
content: complex
minOccurs: 0
Source

<xs:element name="documentation" type="cha:anyURIType" minOccurs="0"/>
Element psr:particleEnergy
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram stc-v1_30_xsd.tmp#STCReference stc-v1_30_xsd.tmp#stcBaseType stc-v1_30_xsd.tmp#coordinateType_frame_id stc-v1_30_xsd.tmp#coordinateType_Name stc-v1_30_xsd.tmp#coordinateType stc-v1_30_xsd.tmp#Value stc-v1_30_xsd.tmp#Error stc-v1_30_xsd.tmp#Resolution stc-v1_30_xsd.tmp#Size stc-v1_30_xsd.tmp#PixSize stc-v1_30_xsd.tmp#basicCoordinateType CoordSys_xsd.tmp#particleCoord
Type basicCoordinateType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
Model Name{0,1} , Value{0,1} , Error{0,2} , Resolution{0,2} , Size{0,2} , PixSize{0,2}
Children Error, Name, PixSize, Resolution, Size, Value
Instance

<psr:particleEnergy frame_id="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="" xmlns:psr="http://voparis-europlanet.obspm.fr/xml/PSR/v1.0" xmlns:stc="http://www.ivoa.net/xml/STC/stc-v1.30.xsd">
  <stc:Name>{0,1}</stc:Name>
  <stc:Value gen_unit="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" pos_angle_unit="" pos_unit="" spectral_unit="" time_unit="" xlink:type="simple" ucd="" vel_time_unit="">{0,1}</stc:Value>
  <stc:Error gen_unit="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" pos_angle_unit="" pos_unit="" spectral_unit="" time_unit="" xlink:type="simple" ucd="" vel_time_unit="">{0,2}</stc:Error>
  <stc:Resolution gen_unit="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" pos_angle_unit="" pos_unit="" spectral_unit="" time_unit="" xlink:type="simple" ucd="" vel_time_unit="">{0,2}</stc:Resolution>
  <stc:Size gen_unit="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" pos_angle_unit="" pos_unit="" spectral_unit="" time_unit="" xlink:type="simple" ucd="" vel_time_unit="">{0,2}</stc:Size>
  <stc:PixSize gen_unit="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" pos_angle_unit="" pos_unit="" spectral_unit="" time_unit="" xlink:type="simple" ucd="" vel_time_unit="">{0,2}</stc:PixSize>
</psr:particleEnergy>
Attributes
QName Type Fixed Default Use Annotation
IDREF_type xs:string optional
ID_type xs:string optional
frame_id xs:IDREF optional
id xs:ID optional
idref xs:IDREF optional
ucd xs:string optional
xlink:href xs:anyURI optional
xlink:type restriction of xs:NMTOKEN simple optional
Source

<xs:element name="particleEnergy" substitutionGroup="psr:particleCoord" type="stc:basicCoordinateType"/>
Element psr:particleMass
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram stc-v1_30_xsd.tmp#STCReference stc-v1_30_xsd.tmp#stcBaseType stc-v1_30_xsd.tmp#coordinateType_frame_id stc-v1_30_xsd.tmp#coordinateType_Name stc-v1_30_xsd.tmp#coordinateType stc-v1_30_xsd.tmp#Value stc-v1_30_xsd.tmp#Error stc-v1_30_xsd.tmp#Resolution stc-v1_30_xsd.tmp#Size stc-v1_30_xsd.tmp#PixSize stc-v1_30_xsd.tmp#basicCoordinateType CoordSys_xsd.tmp#particleCoord
Type basicCoordinateType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
Model Name{0,1} , Value{0,1} , Error{0,2} , Resolution{0,2} , Size{0,2} , PixSize{0,2}
Children Error, Name, PixSize, Resolution, Size, Value
Instance

<psr:particleMass frame_id="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="" xmlns:psr="http://voparis-europlanet.obspm.fr/xml/PSR/v1.0" xmlns:stc="http://www.ivoa.net/xml/STC/stc-v1.30.xsd">
  <stc:Name>{0,1}</stc:Name>
  <stc:Value gen_unit="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" pos_angle_unit="" pos_unit="" spectral_unit="" time_unit="" xlink:type="simple" ucd="" vel_time_unit="">{0,1}</stc:Value>
  <stc:Error gen_unit="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" pos_angle_unit="" pos_unit="" spectral_unit="" time_unit="" xlink:type="simple" ucd="" vel_time_unit="">{0,2}</stc:Error>
  <stc:Resolution gen_unit="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" pos_angle_unit="" pos_unit="" spectral_unit="" time_unit="" xlink:type="simple" ucd="" vel_time_unit="">{0,2}</stc:Resolution>
  <stc:Size gen_unit="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" pos_angle_unit="" pos_unit="" spectral_unit="" time_unit="" xlink:type="simple" ucd="" vel_time_unit="">{0,2}</stc:Size>
  <stc:PixSize gen_unit="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" pos_angle_unit="" pos_unit="" spectral_unit="" time_unit="" xlink:type="simple" ucd="" vel_time_unit="">{0,2}</stc:PixSize>
</psr:particleMass>
Attributes
QName Type Fixed Default Use Annotation
IDREF_type xs:string optional
ID_type xs:string optional
frame_id xs:IDREF optional
id xs:ID optional
idref xs:IDREF optional
ucd xs:string optional
xlink:href xs:anyURI optional
xlink:type restriction of xs:NMTOKEN simple optional
Source

<xs:element name="particleMass" substitutionGroup="psr:particleCoord" type="stc:basicCoordinateType"/>
Element psr:particleCharge
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram stc-v1_30_xsd.tmp#STCReference stc-v1_30_xsd.tmp#stcBaseType stc-v1_30_xsd.tmp#coordinateType_frame_id stc-v1_30_xsd.tmp#coordinateType_Name stc-v1_30_xsd.tmp#coordinateType stc-v1_30_xsd.tmp#Value stc-v1_30_xsd.tmp#Error stc-v1_30_xsd.tmp#Resolution stc-v1_30_xsd.tmp#Size stc-v1_30_xsd.tmp#PixSize stc-v1_30_xsd.tmp#basicCoordinateType CoordSys_xsd.tmp#particleCoord
Type basicCoordinateType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
Model Name{0,1} , Value{0,1} , Error{0,2} , Resolution{0,2} , Size{0,2} , PixSize{0,2}
Children Error, Name, PixSize, Resolution, Size, Value
Instance

<psr:particleCharge frame_id="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="" xmlns:psr="http://voparis-europlanet.obspm.fr/xml/PSR/v1.0" xmlns:stc="http://www.ivoa.net/xml/STC/stc-v1.30.xsd">
  <stc:Name>{0,1}</stc:Name>
  <stc:Value gen_unit="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" pos_angle_unit="" pos_unit="" spectral_unit="" time_unit="" xlink:type="simple" ucd="" vel_time_unit="">{0,1}</stc:Value>
  <stc:Error gen_unit="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" pos_angle_unit="" pos_unit="" spectral_unit="" time_unit="" xlink:type="simple" ucd="" vel_time_unit="">{0,2}</stc:Error>
  <stc:Resolution gen_unit="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" pos_angle_unit="" pos_unit="" spectral_unit="" time_unit="" xlink:type="simple" ucd="" vel_time_unit="">{0,2}</stc:Resolution>
  <stc:Size gen_unit="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" pos_angle_unit="" pos_unit="" spectral_unit="" time_unit="" xlink:type="simple" ucd="" vel_time_unit="">{0,2}</stc:Size>
  <stc:PixSize gen_unit="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" pos_angle_unit="" pos_unit="" spectral_unit="" time_unit="" xlink:type="simple" ucd="" vel_time_unit="">{0,2}</stc:PixSize>
</psr:particleCharge>
Attributes
QName Type Fixed Default Use Annotation
IDREF_type xs:string optional
ID_type xs:string optional
frame_id xs:IDREF optional
id xs:ID optional
idref xs:IDREF optional
ucd xs:string optional
xlink:href xs:anyURI optional
xlink:type restriction of xs:NMTOKEN simple optional
Source

<xs:element name="particleCharge" substitutionGroup="psr:particleCoord" type="stc:basicCoordinateType"/>
Element psr:particlePichAngle
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram stc-v1_30_xsd.tmp#STCReference stc-v1_30_xsd.tmp#stcBaseType stc-v1_30_xsd.tmp#coordinateType_frame_id stc-v1_30_xsd.tmp#coordinateType_Name stc-v1_30_xsd.tmp#coordinateType stc-v1_30_xsd.tmp#Value stc-v1_30_xsd.tmp#Error stc-v1_30_xsd.tmp#Resolution stc-v1_30_xsd.tmp#Size stc-v1_30_xsd.tmp#PixSize stc-v1_30_xsd.tmp#basicCoordinateType CoordSys_xsd.tmp#particleCoord
Type basicCoordinateType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
Model Name{0,1} , Value{0,1} , Error{0,2} , Resolution{0,2} , Size{0,2} , PixSize{0,2}
Children Error, Name, PixSize, Resolution, Size, Value
Instance

<psr:particlePichAngle frame_id="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="" xmlns:psr="http://voparis-europlanet.obspm.fr/xml/PSR/v1.0" xmlns:stc="http://www.ivoa.net/xml/STC/stc-v1.30.xsd">
  <stc:Name>{0,1}</stc:Name>
  <stc:Value gen_unit="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" pos_angle_unit="" pos_unit="" spectral_unit="" time_unit="" xlink:type="simple" ucd="" vel_time_unit="">{0,1}</stc:Value>
  <stc:Error gen_unit="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" pos_angle_unit="" pos_unit="" spectral_unit="" time_unit="" xlink:type="simple" ucd="" vel_time_unit="">{0,2}</stc:Error>
  <stc:Resolution gen_unit="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" pos_angle_unit="" pos_unit="" spectral_unit="" time_unit="" xlink:type="simple" ucd="" vel_time_unit="">{0,2}</stc:Resolution>
  <stc:Size gen_unit="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" pos_angle_unit="" pos_unit="" spectral_unit="" time_unit="" xlink:type="simple" ucd="" vel_time_unit="">{0,2}</stc:Size>
  <stc:PixSize gen_unit="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" pos_angle_unit="" pos_unit="" spectral_unit="" time_unit="" xlink:type="simple" ucd="" vel_time_unit="">{0,2}</stc:PixSize>
</psr:particlePichAngle>
Attributes
QName Type Fixed Default Use Annotation
IDREF_type xs:string optional
ID_type xs:string optional
frame_id xs:IDREF optional
id xs:ID optional
idref xs:IDREF optional
ucd xs:string optional
xlink:href xs:anyURI optional
xlink:type restriction of xs:NMTOKEN simple optional
Source

<xs:element name="particlePichAngle" substitutionGroup="psr:particleCoord" type="stc:basicCoordinateType"/>
Element psr:particleEnergyPerCharge
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram stc-v1_30_xsd.tmp#STCReference stc-v1_30_xsd.tmp#stcBaseType stc-v1_30_xsd.tmp#coordinateType_frame_id stc-v1_30_xsd.tmp#coordinateType_Name stc-v1_30_xsd.tmp#coordinateType stc-v1_30_xsd.tmp#Value stc-v1_30_xsd.tmp#Error stc-v1_30_xsd.tmp#Resolution stc-v1_30_xsd.tmp#Size stc-v1_30_xsd.tmp#PixSize stc-v1_30_xsd.tmp#basicCoordinateType CoordSys_xsd.tmp#particleCoord
Type basicCoordinateType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
Model Name{0,1} , Value{0,1} , Error{0,2} , Resolution{0,2} , Size{0,2} , PixSize{0,2}
Children Error, Name, PixSize, Resolution, Size, Value
Instance

<psr:particleEnergyPerCharge frame_id="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="" xmlns:psr="http://voparis-europlanet.obspm.fr/xml/PSR/v1.0" xmlns:stc="http://www.ivoa.net/xml/STC/stc-v1.30.xsd">
  <stc:Name>{0,1}</stc:Name>
  <stc:Value gen_unit="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" pos_angle_unit="" pos_unit="" spectral_unit="" time_unit="" xlink:type="simple" ucd="" vel_time_unit="">{0,1}</stc:Value>
  <stc:Error gen_unit="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" pos_angle_unit="" pos_unit="" spectral_unit="" time_unit="" xlink:type="simple" ucd="" vel_time_unit="">{0,2}</stc:Error>
  <stc:Resolution gen_unit="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" pos_angle_unit="" pos_unit="" spectral_unit="" time_unit="" xlink:type="simple" ucd="" vel_time_unit="">{0,2}</stc:Resolution>
  <stc:Size gen_unit="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" pos_angle_unit="" pos_unit="" spectral_unit="" time_unit="" xlink:type="simple" ucd="" vel_time_unit="">{0,2}</stc:Size>
  <stc:PixSize gen_unit="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" pos_angle_unit="" pos_unit="" spectral_unit="" time_unit="" xlink:type="simple" ucd="" vel_time_unit="">{0,2}</stc:PixSize>
</psr:particleEnergyPerCharge>
Attributes
QName Type Fixed Default Use Annotation
IDREF_type xs:string optional
ID_type xs:string optional
frame_id xs:IDREF optional
id xs:ID optional
idref xs:IDREF optional
ucd xs:string optional
xlink:href xs:anyURI optional
xlink:type restriction of xs:NMTOKEN simple optional
Source

<xs:element name="particleEnergyPerCharge" substitutionGroup="psr:particleCoord" type="stc:basicCoordinateType"/>
Element psr:particleMassPerCharge
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram stc-v1_30_xsd.tmp#STCReference stc-v1_30_xsd.tmp#stcBaseType stc-v1_30_xsd.tmp#coordinateType_frame_id stc-v1_30_xsd.tmp#coordinateType_Name stc-v1_30_xsd.tmp#coordinateType stc-v1_30_xsd.tmp#Value stc-v1_30_xsd.tmp#Error stc-v1_30_xsd.tmp#Resolution stc-v1_30_xsd.tmp#Size stc-v1_30_xsd.tmp#PixSize stc-v1_30_xsd.tmp#basicCoordinateType CoordSys_xsd.tmp#particleCoord
Type basicCoordinateType
Type hierarchy
Properties
content: complex
Substitution Group Affiliation
Model Name{0,1} , Value{0,1} , Error{0,2} , Resolution{0,2} , Size{0,2} , PixSize{0,2}
Children Error, Name, PixSize, Resolution, Size, Value
Instance

<psr:particleMassPerCharge frame_id="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" xlink:type="simple" ucd="" xmlns:psr="http://voparis-europlanet.obspm.fr/xml/PSR/v1.0" xmlns:stc="http://www.ivoa.net/xml/STC/stc-v1.30.xsd">
  <stc:Name>{0,1}</stc:Name>
  <stc:Value gen_unit="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" pos_angle_unit="" pos_unit="" spectral_unit="" time_unit="" xlink:type="simple" ucd="" vel_time_unit="">{0,1}</stc:Value>
  <stc:Error gen_unit="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" pos_angle_unit="" pos_unit="" spectral_unit="" time_unit="" xlink:type="simple" ucd="" vel_time_unit="">{0,2}</stc:Error>
  <stc:Resolution gen_unit="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" pos_angle_unit="" pos_unit="" spectral_unit="" time_unit="" xlink:type="simple" ucd="" vel_time_unit="">{0,2}</stc:Resolution>
  <stc:Size gen_unit="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" pos_angle_unit="" pos_unit="" spectral_unit="" time_unit="" xlink:type="simple" ucd="" vel_time_unit="">{0,2}</stc:Size>
  <stc:PixSize gen_unit="" xlink:href="" id="" ID_type="" idref="" IDREF_type="" pos_angle_unit="" pos_unit="" spectral_unit="" time_unit="" xlink:type="simple" ucd="" vel_time_unit="">{0,2}</stc:PixSize>
</psr:particleMassPerCharge>
Attributes
QName Type Fixed Default Use Annotation
IDREF_type xs:string optional
ID_type xs:string optional
frame_id xs:IDREF optional
id xs:ID optional
idref xs:IDREF optional
ucd xs:string optional
xlink:href xs:anyURI optional
xlink:type restriction of xs:NMTOKEN simple optional
Source

<xs:element name="particleMassPerCharge" substitutionGroup="psr:particleCoord" type="stc:basicCoordinateType"/>
Complex Type psr:CoordSysType
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Annotations

TBD
Diagram
Diagram stc-v1_30_xsd.tmp#STCReference stc-v1_30_xsd.tmp#stcBaseType stc-v1_30_xsd.tmp#CoordFrame stc-v1_30_xsd.tmp#coordSysType stc-v1_30_xsd.tmp#TimeFrame stc-v1_30_xsd.tmp#SpaceFrame stc-v1_30_xsd.tmp#SpectralFrame stc-v1_30_xsd.tmp#RedshiftFrame CoordSys_xsd.tmp#CoordSysType_particleFrame CoordSys_xsd.tmp#CoordSysType_otherFrame
Type extension of coordSysType
Type hierarchy
Used by
Model CoordFrame* , (TimeFrame{0,1} | SpaceFrame{0,1} | SpectralFrame{0,1} | RedshiftFrame{0,1} | psr:particleFrame{0,1} | psr:otherFrame{0,1})
Children CoordFrame, RedshiftFrame, SpaceFrame, SpectralFrame, TimeFrame, psr:otherFrame, psr:particleFrame
Attributes
QName Type Fixed Default Use Annotation
IDREF_type xs:string optional
ID_type xs:string optional
id xs:ID optional
idref xs:IDREF optional
ucd xs:string optional
xlink:href xs:anyURI optional
xlink:type restriction of xs:NMTOKEN simple optional
Source

<xs:complexType name="CoordSysType">
  <xs:annotation>
    <xs:documentation>TBD</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="stc:coordSysType">
      <xs:choice>
        <xs:element ref="stc:TimeFrame" minOccurs="0"/>
        <xs:element ref="stc:SpaceFrame" minOccurs="0"/>
        <xs:element ref="stc:SpectralFrame" minOccurs="0"/>
        <xs:element ref="stc:RedshiftFrame" minOccurs="0"/>
        <xs:element name="particleFrame" type="psr:ParticleFrameType" minOccurs="0"/>
        <xs:element name="otherFrame" type="psr:OtherFrameType" minOccurs="0"/>
      </xs:choice>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
Complex Type psr:ParticleFrameType
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram stc-v1_30_xsd.tmp#STCReference stc-v1_30_xsd.tmp#stcBaseType stc-v1_30_xsd.tmp#coordFrameType_Name stc-v1_30_xsd.tmp#coordFrameType
Type extension of coordFrameType
Type hierarchy
Used by
Model Name{0,1}
Children Name
Attributes
QName Type Fixed Default Use Annotation
IDREF_type xs:string optional
ID_type xs:string optional
id xs:ID optional
idref xs:IDREF optional
ucd xs:string optional
xlink:href xs:anyURI optional
xlink:type restriction of xs:NMTOKEN simple optional
Source

<xs:complexType name="ParticleFrameType">
  <xs:complexContent>
    <xs:extension base="stc:coordFrameType"/>
  </xs:complexContent>
</xs:complexType>
Complex Type psr:OtherFrameType
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram stc-v1_30_xsd.tmp#STCReference stc-v1_30_xsd.tmp#stcBaseType stc-v1_30_xsd.tmp#coordFrameType_Name stc-v1_30_xsd.tmp#coordFrameType
Type extension of coordFrameType
Type hierarchy
Used by
Model Name{0,1}
Children Name
Attributes
QName Type Fixed Default Use Annotation
IDREF_type xs:string optional
ID_type xs:string optional
id xs:ID optional
idref xs:IDREF optional
ucd xs:string optional
xlink:href xs:anyURI optional
xlink:type restriction of xs:NMTOKEN simple optional
Source

<xs:complexType name="OtherFrameType">
  <xs:complexContent>
    <xs:extension base="stc:coordFrameType"/>
  </xs:complexContent>
</xs:complexType>
Complex Type psr:CoverageType
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Annotations

This element defines the coverage of the axis, ie, either: - location
(for single point axis) - lower and upper limits - support area - sensitivity map
Diagram
Diagram CoordSys_xsd.tmp#CoverageType_coordSystem CoordSys_xsd.tmp#CoverageType_units CoordSys_xsd.tmp#CoverageType_location CoordSys_xsd.tmp#CoverageType_bounds CoordSys_xsd.tmp#CoverageType_support CoordSys_xsd.tmp#CoverageType_sensitivity
Used by
Model psr:coordSystem{0,1} , psr:units{0,1} , psr:location{0,1} , psr:bounds , psr:support{0,1} , psr:sensitivity{0,1}
Children psr:bounds, psr:coordSystem, psr:location, psr:sensitivity, psr:support, psr:units
Source

<xs:complexType name="CoverageType">
  <xs:annotation>
    <xs:documentation>This element defines the coverage of the axis, ie, either: - location (for single point axis) - lower and upper limits - support area - sensitivity map</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="coordSystem" type="psr:CoordSysType" minOccurs="0"/>
    <xs:element name="units" type="psr:ExtendedUnit" minOccurs="0"/>
    <xs:element name="location" type="psr:LocationType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Typical value on one axis</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="bounds" type="psr:BoundsType" minOccurs="1">
      <xs:annotation>
        <xs:documentation>The limits of the observation on this axis</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="support" type="psr:SupportType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Describes the area where measurements are effectively present and interpretable</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="sensitivity" type="psr:SensitivityType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>encodes the variability of response along the axis</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type psr:LocationType
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram CoordSys_xsd.tmp#LocationType_extendCoordSystem CoordSys_xsd.tmp#LocationType_coord CoordSys_xsd.tmp#LocationType_units CoordSys_xsd.tmp#LocationType_documentation
Used by
Model psr:extendCoordSystem{0,1} , psr:coord+ , psr:units{0,1} , psr:documentation{0,1}
Children psr:coord, psr:documentation, psr:extendCoordSystem, psr:units
Source

<xs:complexType name="LocationType">
  <xs:sequence>
    <xs:element name="extendCoordSystem" type="psr:CoordSysType" minOccurs="0"/>
    <xs:element name="coord" type="psr:CoordsType" maxOccurs="unbounded"/>
    <xs:element name="units" type="psr:ExtendedUnit" minOccurs="0"/>
    <xs:element name="documentation" type="cha:anyURIType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>The typical coordinate value Type: stc:astroCoordsType</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type psr:CoordsType
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Annotations

TBD
Diagram
Diagram stc-v1_30_xsd.tmp#STCReference stc-v1_30_xsd.tmp#stcBaseType stc-v1_30_xsd.tmp#coordsType_coord_system_id stc-v1_30_xsd.tmp#GenCoordinate stc-v1_30_xsd.tmp#coordsType stc-v1_30_xsd.tmp#Time stc-v1_30_xsd.tmp#Position stc-v1_30_xsd.tmp#Velocity stc-v1_30_xsd.tmp#Spectral stc-v1_30_xsd.tmp#Redshift CoordSys_xsd.tmp#CoordsType_CoordFile CoordSys_xsd.tmp#CoordsType_Orbit CoordSys_xsd.tmp#particleCoord
Type extension of coordsType
Type hierarchy
Used by
Model GenCoordinate , (Time{0,1} | Position{0,1} | Velocity{0,1} | Spectral{0,1} | Redshift{0,1} | psr:CoordFile{0,1} | psr:Orbit{0,1} | psr:particleCoord)
Children GenCoordinate, Position, Redshift, Spectral, Time, Velocity, psr:CoordFile, psr:Orbit, psr:particleCoord
Attributes
QName Type Fixed Default Use Annotation
IDREF_type xs:string optional
ID_type xs:string optional
coord_system_id xs:IDREF required
id xs:ID optional
idref xs:IDREF optional
ucd xs:string optional
xlink:href xs:anyURI optional
xlink:type restriction of xs:NMTOKEN simple optional
Source

<xs:complexType name="CoordsType">
  <xs:annotation>
    <xs:documentation>TBD</xs:documentation>
  </xs:annotation>
  <xs:complexContent>
    <xs:extension base="stc:coordsType">
      <xs:choice>
        <xs:element ref="stc:Time" minOccurs="0"/>
        <xs:element ref="stc:Position" minOccurs="0"/>
        <xs:element ref="stc:Velocity" minOccurs="0"/>
        <xs:element ref="stc:Spectral" minOccurs="0"/>
        <xs:element ref="stc:Redshift" minOccurs="0"/>
        <xs:element name="CoordFile" type="stc:astroCoordsFileType" nillable="true" minOccurs="0">
          <xs:annotation>
            <xs:documentation>Some or all coordinate values may be given in file</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element name="Orbit" type="stc:orbitType" nillable="true" minOccurs="0">
          <xs:annotation>
            <xs:documentation>Orbit specified by orbital elements</xs:documentation>
          </xs:annotation>
        </xs:element>
        <xs:element ref="psr:particleCoord"/>
      </xs:choice>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>
Complex Type psr:BoundsType
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram CoordSys_xsd.tmp#BoundsType_extendCoordSystem CoordSys_xsd.tmp#BoundsType_units CoordSys_xsd.tmp#BoundsType_extent CoordSys_xsd.tmp#BoundsType_limits CoordSys_xsd.tmp#BoundsType_documentation
Used by
Model psr:extendCoordSystem{0,1} , psr:units{0,1} , psr:extent{0,1} , psr:limits , psr:documentation{0,1}
Children psr:documentation, psr:extendCoordSystem, psr:extent, psr:limits, psr:units
Source

<xs:complexType name="BoundsType">
  <xs:sequence>
    <xs:element name="extendCoordSystem" type="psr:CoordSysType" minOccurs="0"/>
    <xs:element name="units" type="psr:ExtendedUnit" minOccurs="0"/>
    <xs:element name="extent" type="stc:double1Type" minOccurs="0"/>
    <xs:element name="limits" type="cha:CharCoordAreaType">
      <xs:annotation>
        <xs:documentation>The actual values defining the bounds. 2 possible types : a cha:CharBox which is a customised STC:Coordinate with mandatory value and size or an STC:Interval</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="documentation" type="cha:anyURIType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>A document to mention how the bounds are defined.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type psr:SupportType
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram CoordSys_xsd.tmp#SupportType_extendCoordSystem CoordSys_xsd.tmp#SupportType_units CoordSys_xsd.tmp#SupportType_extent CoordSys_xsd.tmp#SupportType_area CoordSys_xsd.tmp#SupportType_AreaType CoordSys_xsd.tmp#SupportType_documentation
Used by
Model psr:extendCoordSystem{0,1} , psr:units{0,1} , psr:extent{0,1} , psr:area , psr:AreaType , psr:documentation{0,1}
Children psr:AreaType, psr:area, psr:documentation, psr:extendCoordSystem, psr:extent, psr:units
Source

<xs:complexType name="SupportType">
  <xs:sequence>
    <xs:element name="extendCoordSystem" type="psr:CoordSysType" minOccurs="0"/>
    <xs:element name="units" type="psr:ExtendedUnit" minOccurs="0"/>
    <xs:element name="extent" type="stc:double1Type" minOccurs="0"/>
    <xs:element name="area" type="stc:astroCoordAreaType">
      <xs:annotation>
        <xs:documentation>Defines the effective covered region</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="AreaType" type="xs:anyType">
      <xs:annotation>
        <xs:documentation>Gives the name of the region shape Type: predefined string in {Circle, Polygon, Box, ...}</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="documentation" type="cha:anyURIType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Some text about the Support region definition Type: any URI type</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type psr:SensitivityType
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram CoordSys_xsd.tmp#SensitivityType_extendCoordSystem CoordSys_xsd.tmp#SensitivityType_units CoordSys_xsd.tmp#SensitivityType_variationMap CoordSys_xsd.tmp#SensitivityType_documentation
Used by
Model psr:extendCoordSystem{0,1} , psr:units{0,1} , psr:variationMap , psr:documentation{0,1}
Children psr:documentation, psr:extendCoordSystem, psr:units, psr:variationMap
Source

<xs:complexType name="SensitivityType">
  <xs:sequence>
    <xs:element name="extendCoordSystem" type="psr:CoordSysType" minOccurs="0"/>
    <xs:element name="units" type="psr:ExtendedUnit" minOccurs="0"/>
    <xs:element name="variationMap" type="cha:anyURIType">
      <xs:annotation>
        <xs:documentation>Encodes the variability of the response along the axis</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="documentation" type="cha:anyURIType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Documents the purpose, type and encoding of sensitivity information Type: URL</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type psr:ResolutionType
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Annotations

This element defines the resolution of the axis (ie: the integration
or exposure time for temporal axis, the integration bandwidth for spectral axis...),
in terms of: - Reference value (eg median) - Lower and upper bounds - resolution  map
Diagram
Diagram CoordSys_xsd.tmp#ResolutionType_coordSystem CoordSys_xsd.tmp#ResolutionType_units CoordSys_xsd.tmp#ResolutionType_resolutionRefVal CoordSys_xsd.tmp#ResolutionType_resolutionBounds CoordSys_xsd.tmp#ResolutionType_resolutionSupport CoordSys_xsd.tmp#ResolutionType_resolutionVariability
Used by
Model psr:coordSystem{0,1} , psr:units{0,1} , psr:resolutionRefVal{0,1} , psr:resolutionBounds{0,1} , psr:resolutionSupport{0,1} , psr:resolutionVariability{0,1}
Children psr:coordSystem, psr:resolutionBounds, psr:resolutionRefVal, psr:resolutionSupport, psr:resolutionVariability, psr:units
Source

<xs:complexType name="ResolutionType">
  <xs:annotation>
    <xs:documentation>This element defines the resolution of the axis (ie: the integration or exposure time for temporal axis, the integration bandwidth for spectral axis...), in terms of: - Reference value (eg median) - Lower and upper bounds - resolution map</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="coordSystem" type="psr:CoordSysType" minOccurs="0"/>
    <xs:element name="units" type="psr:ExtendedUnit" minOccurs="0">
      <xs:annotation>
        <xs:documentation>This "Units" element is defined from VOUnits documentation. It differs from the "unit" element of characterizationAxisType.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="resolutionRefVal" type="psr:ResolutionRefValType" minOccurs="0"/>
    <xs:element name="resolutionBounds" type="psr:ResolutionBoundsType" minOccurs="0"/>
    <xs:element name="resolutionSupport" type="psr:ResolutionSupportType" minOccurs="0"/>
    <xs:element name="resolutionVariability" type="psr:ResolutionVariabilityType" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>
Complex Type psr:ResolutionRefValType
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram CoordSys_xsd.tmp#ResolutionRefValType_coordSystem CoordSys_xsd.tmp#ResolutionRefValType_units stc-v1_30_xsd.tmp#CResolution CoordSys_xsd.tmp#ResolutionRefValType_ResPow CoordSys_xsd.tmp#ResolutionRefValType_documentation
Used by
Model psr:coordSystem{0,1} , psr:units{0,1} , CResolution , psr:ResPow{0,1} , psr:documentation{0,1}
Children CResolution, psr:ResPow, psr:coordSystem, psr:documentation, psr:units
Source

<xs:complexType name="ResolutionRefValType">
  <xs:sequence>
    <xs:element name="coordSystem" type="psr:CoordSysType" minOccurs="0"/>
    <xs:element name="units" type="psr:ExtendedUnit" minOccurs="0">
      <xs:annotation>
        <xs:documentation>This "Units" element is defined from VOUnits documentation. It differs from the "unit" element of characterizationAxisType.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element ref="stc:CResolution"/>
    <xs:element name="ResPow" type="stc:double1Type" minOccurs="0"/>
    <xs:element name="documentation" type="cha:anyURIType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Defines and explains how this reference value for resolution has been estimated Type: URL.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type psr:ResolutionBoundsType
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram CoordSys_xsd.tmp#ResolutionBoundsType_coordSystem CoordSys_xsd.tmp#ResolutionBoundsType_units Characterisation-v1_11_xsd.tmp#resolutionLimits CoordSys_xsd.tmp#ResolutionBoundsType_documentation
Used by
Model psr:coordSystem{0,1} , psr:units{0,1} , cha:resolutionLimits , psr:documentation{0,1}
Children cha:resolutionLimits, psr:coordSystem, psr:documentation, psr:units
Source

<xs:complexType name="ResolutionBoundsType">
  <xs:sequence>
    <xs:element name="coordSystem" type="psr:CoordSysType" minOccurs="0"/>
    <xs:element name="units" type="psr:ExtendedUnit" minOccurs="0">
      <xs:annotation>
        <xs:documentation>This "Units" element is defined from VOUnits documentation. It differs from the "unit" element of characterizationAxisType.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element ref="cha:resolutionLimits"/>
    <xs:element name="documentation" type="cha:anyURIType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Defines and explains how this resolution has been estimated</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type psr:ResolutionSupportType
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram CoordSys_xsd.tmp#ResolutionSupportType_coordSystem CoordSys_xsd.tmp#ResolutionSupportType_units Characterisation-v1_11_xsd.tmp#resolutionLimits CoordSys_xsd.tmp#ResolutionSupportType_documentation
Used by
Model psr:coordSystem{0,1} , psr:units{0,1} , cha:resolutionLimits* , psr:documentation{0,1}
Children cha:resolutionLimits, psr:coordSystem, psr:documentation, psr:units
Source

<xs:complexType name="ResolutionSupportType">
  <xs:sequence>
    <xs:element name="coordSystem" type="psr:CoordSysType" minOccurs="0"/>
    <xs:element name="units" type="psr:ExtendedUnit" minOccurs="0">
      <xs:annotation>
        <xs:documentation>This "Units" element is defined from VOUnits documentation. It differs from the "unit" element of characterizationAxisType.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element ref="cha:resolutionLimits" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element name="documentation" type="cha:anyURIType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Defines and explains how this resolution has been estimated Type: URL.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type psr:ResolutionVariabilityType
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram CoordSys_xsd.tmp#ResolutionVariabilityType_coordSystem CoordSys_xsd.tmp#ResolutionVariabilityType_units CoordSys_xsd.tmp#ResolutionVariabilityType_resolutionMap CoordSys_xsd.tmp#ResolutionVariabilityType_documentation
Used by
Model psr:coordSystem{0,1} , psr:units{0,1} , psr:resolutionMap , psr:documentation{0,1}
Children psr:coordSystem, psr:documentation, psr:resolutionMap, psr:units
Source

<xs:complexType name="ResolutionVariabilityType">
  <xs:sequence>
    <xs:element name="coordSystem" type="psr:CoordSysType" minOccurs="0"/>
    <xs:element name="units" type="psr:ExtendedUnit" minOccurs="0">
      <xs:annotation>
        <xs:documentation>This "Units" element is defined from VOUnits documentation. It differs from the "unit" element of characterizationAxisType.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="resolutionMap" type="cha:anyURIType"/>
    <xs:element name="documentation" type="cha:anyURIType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Defines and explains how this resolution has been estimated Type: URL.</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type psr:SamplingPrecisionType
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Annotations

This element defines the Sampling of the axis in terms of either : - sampling
rate reference value - Lower and upper limits - sampling variability map.
Diagram
Diagram CoordSys_xsd.tmp#SamplingPrecisionType_coordSystem CoordSys_xsd.tmp#SamplingPrecisionType_units CoordSys_xsd.tmp#SamplingPrecisionType_samplingPrecisionRefVal CoordSys_xsd.tmp#SamplingPrecisionType_samplingPrecisionBounds CoordSys_xsd.tmp#SamplingPrecisionType_samplingPrecisionSupport CoordSys_xsd.tmp#SamplingPrecisionType_samplingPrecisionVariability
Used by
Model psr:coordSystem{0,1} , psr:units{0,1} , psr:samplingPrecisionRefVal , psr:samplingPrecisionBounds , psr:samplingPrecisionSupport{0,1} , psr:samplingPrecisionVariability{0,1}
Children psr:coordSystem, psr:samplingPrecisionBounds, psr:samplingPrecisionRefVal, psr:samplingPrecisionSupport, psr:samplingPrecisionVariability, psr:units
Source

<xs:complexType name="SamplingPrecisionType">
  <xs:annotation>
    <xs:documentation>This element defines the Sampling of the axis in terms of either : - sampling rate reference value - Lower and upper limits - sampling variability map.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="coordSystem" type="psr:CoordSysType" minOccurs="0"/>
    <xs:element name="units" type="psr:ExtendedUnit" minOccurs="0"/>
    <xs:element name="samplingPrecisionRefVal" type="psr:SamplingPrecisionRefValType"/>
    <xs:element name="samplingPrecisionBounds" type="psr:SamplingPrecisionBoundsType" minOccurs="1"/>
    <xs:element name="samplingPrecisionSupport" type="psr:SamplingPrecisionSupportType" minOccurs="0"/>
    <xs:element name="samplingPrecisionVariability" type="psr:SamplingPrecisionVariabilityType" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>
Complex Type psr:SamplingPrecisionRefValType
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram CoordSys_xsd.tmp#SamplingPrecisionRefValType_extendCoordSystem CoordSys_xsd.tmp#SamplingPrecisionRefValType_units Characterisation-v1_11_xsd.tmp#samplingPeriod Characterisation-v1_11_xsd.tmp#sampleExtent CoordSys_xsd.tmp#SamplingPrecisionRefValType_fillFactor CoordSys_xsd.tmp#SamplingPrecisionRefValType_documentation
Used by
Model psr:extendCoordSystem{0,1} , psr:units{0,1} , ((cha:samplingPeriod , cha:sampleExtent{0,1}) | psr:fillFactor{0,1}) , psr:documentation{0,1}
Children cha:sampleExtent, cha:samplingPeriod, psr:documentation, psr:extendCoordSystem, psr:fillFactor, psr:units
Source

<xs:complexType name="SamplingPrecisionRefValType">
  <xs:sequence>
    <xs:element name="extendCoordSystem" type="psr:CoordSysType" minOccurs="0"/>
    <xs:element name="units" type="psr:ExtendedUnit" minOccurs="0"/>
    <xs:choice>
      <xs:sequence>
        <xs:element ref="cha:samplingPeriod"/>
        <xs:element ref="cha:sampleExtent" minOccurs="0"/>
      </xs:sequence>
      <xs:element name="fillFactor" type="xs:double" minOccurs="0"/>
    </xs:choice>
    <xs:element name="documentation" type="cha:anyURIType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Explains how the fill factor is estimated . Type: URI</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type psr:SamplingPrecisionBoundsType
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram CoordSys_xsd.tmp#SamplingPrecisionBoundsType_extendCoordSystem CoordSys_xsd.tmp#SamplingPrecisionBoundsType_units Characterisation-v1_11_xsd.tmp#samplingPeriodLimits Characterisation-v1_11_xsd.tmp#samplingExtentLimits CoordSys_xsd.tmp#SamplingPrecisionBoundsType_documentation
Used by
Model psr:extendCoordSystem{0,1} , psr:units{0,1} , cha:samplingPeriodLimits , cha:samplingExtentLimits{0,1} , psr:documentation{0,1}
Children cha:samplingExtentLimits, cha:samplingPeriodLimits, psr:documentation, psr:extendCoordSystem, psr:units
Source

<xs:complexType name="SamplingPrecisionBoundsType">
  <xs:sequence>
    <xs:element name="extendCoordSystem" type="psr:CoordSysType" minOccurs="0"/>
    <xs:element name="units" type="psr:ExtendedUnit" minOccurs="0"/>
    <xs:element ref="cha:samplingPeriodLimits"/>
    <xs:element ref="cha:samplingExtentLimits" minOccurs="0"/>
    <xs:element name="documentation" type="cha:anyURIType" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>
Complex Type psr:SamplingPrecisionSupportType
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram CoordSys_xsd.tmp#SamplingPrecisionSupportType_extendCoordSystem CoordSys_xsd.tmp#SamplingPrecisionSupportType_units Characterisation-v1_11_xsd.tmp#samplingPeriodLimits Characterisation-v1_11_xsd.tmp#samplingExtentLimits CoordSys_xsd.tmp#SamplingPrecisionSupportType_documentation
Used by
Model psr:extendCoordSystem{0,1} , psr:units{0,1} , cha:samplingPeriodLimits* , cha:samplingExtentLimits* , psr:documentation{0,1}
Children cha:samplingExtentLimits, cha:samplingPeriodLimits, psr:documentation, psr:extendCoordSystem, psr:units
Source

<xs:complexType name="SamplingPrecisionSupportType">
  <xs:sequence>
    <xs:element name="extendCoordSystem" type="psr:CoordSysType" minOccurs="0"/>
    <xs:element name="units" type="psr:ExtendedUnit" minOccurs="0"/>
    <xs:element ref="cha:samplingPeriodLimits" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element ref="cha:samplingExtentLimits" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element name="documentation" type="cha:anyURIType" minOccurs="0">
      <xs:annotation>
        <xs:documentation>A place to hook some explanations about "how" the Sampling was done and assessed. Type: URI</xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>
Complex Type psr:SamplingPrecisionVariabilityType
Namespace http://voparis-europlanet.obspm.fr/xml/PSR/v1.0
Diagram
Diagram CoordSys_xsd.tmp#SamplingPrecisionVariabilityType_extendCoordSystem CoordSys_xsd.tmp#SamplingPrecisionVariabilityType_units CoordSys_xsd.tmp#SamplingPrecisionVariabilityType_samplingPrecisionMap CoordSys_xsd.tmp#SamplingPrecisionVariabilityType_documentation
Used by
Model psr:extendCoordSystem{0,1} , psr:units{0,1} , psr:samplingPrecisionMap , psr:documentation{0,1}
Children psr:documentation, psr:extendCoordSystem, psr:samplingPrecisionMap, psr:units
Source

<xs:complexType name="SamplingPrecisionVariabilityType">
  <xs:sequence>
    <xs:element name="extendCoordSystem" type="psr:CoordSysType" minOccurs="0"/>
    <xs:element name="units" type="psr:ExtendedUnit" minOccurs="0"/>
    <xs:element name="samplingPrecisionMap" type="cha:anyURIType">
      <xs:annotation>
        <xs:documentation>This map describes the variability of the sampling along the axis, or the varying shape of the sampling fonction, or both. Can be attached to the data implemented as anyURI type</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="documentation" type="cha:anyURIType" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>
XML Schema documentation generated by ® XML Editor.
